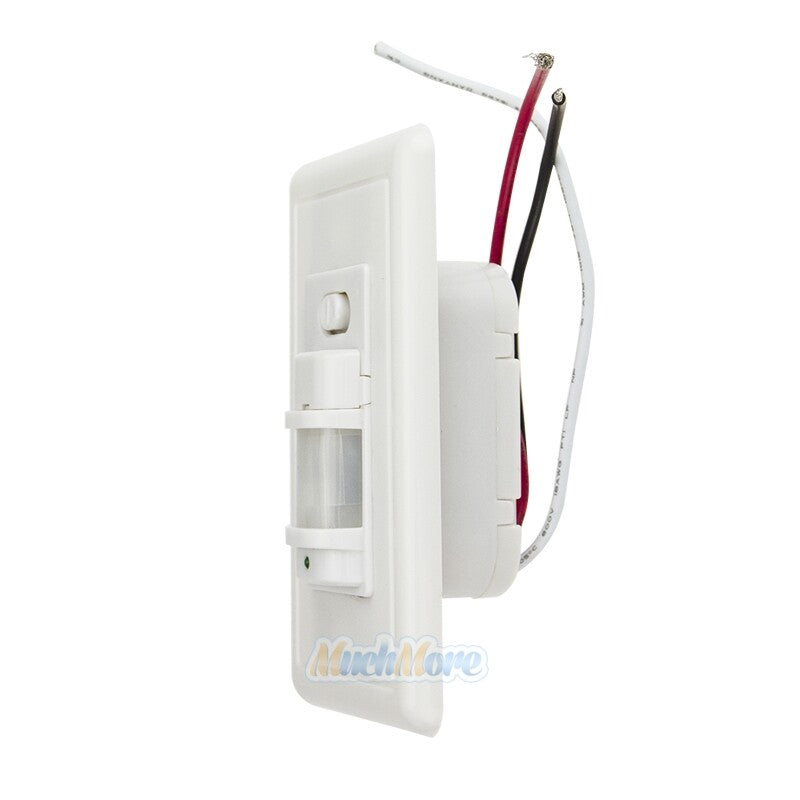

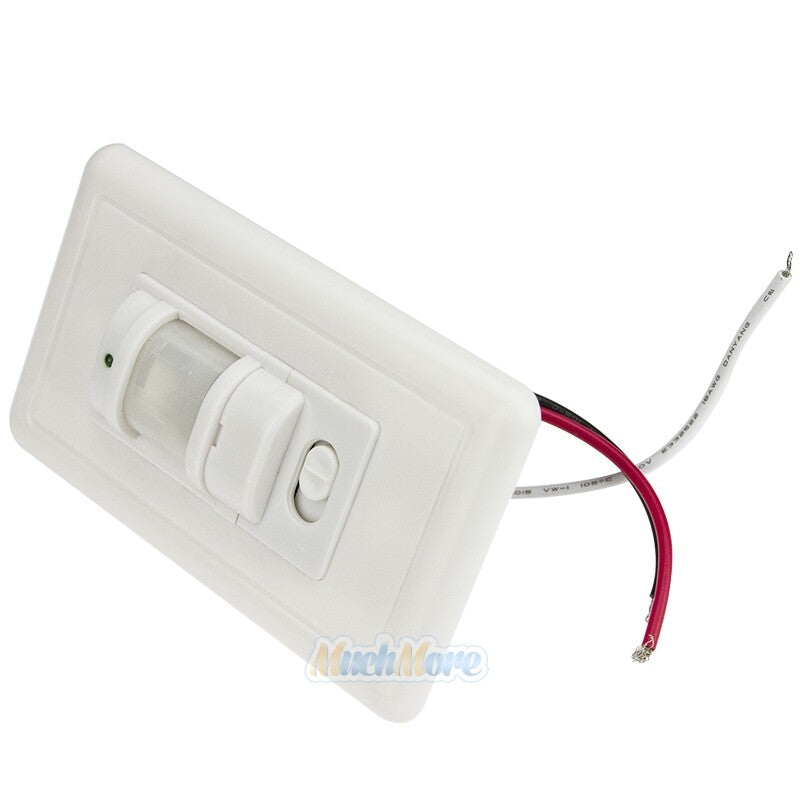

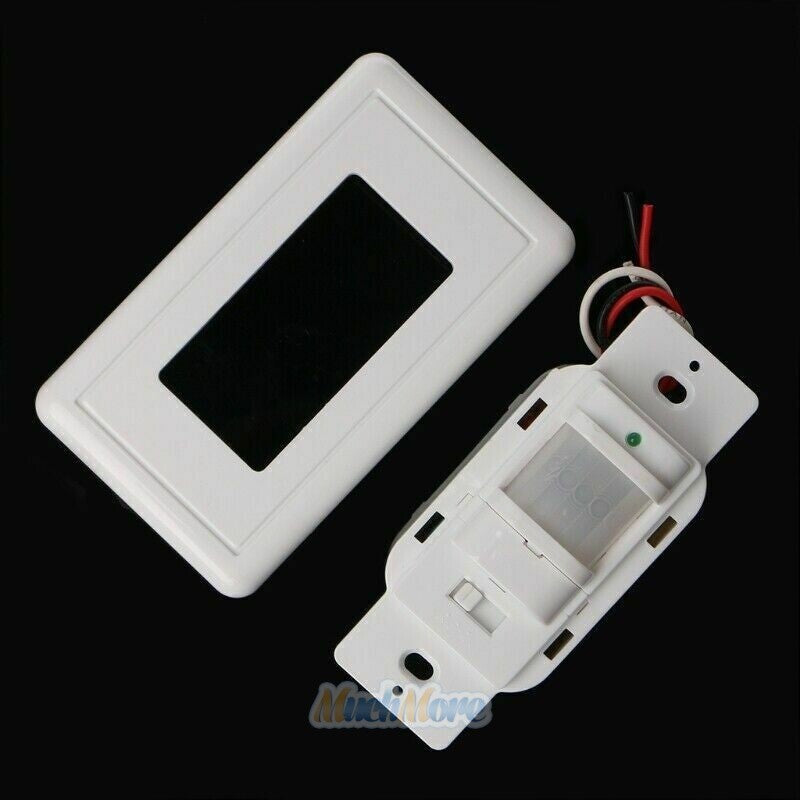

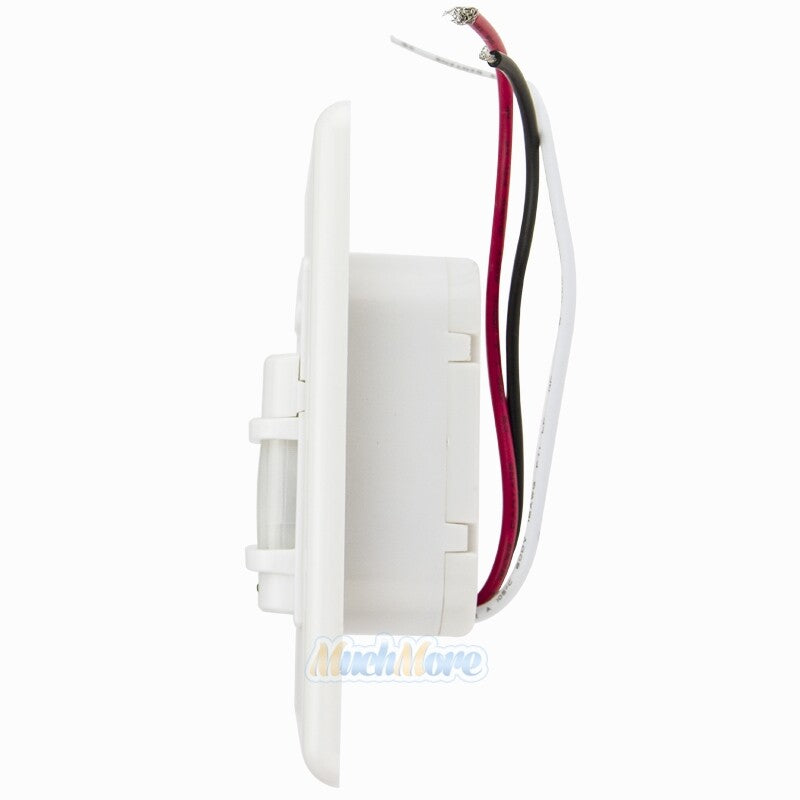

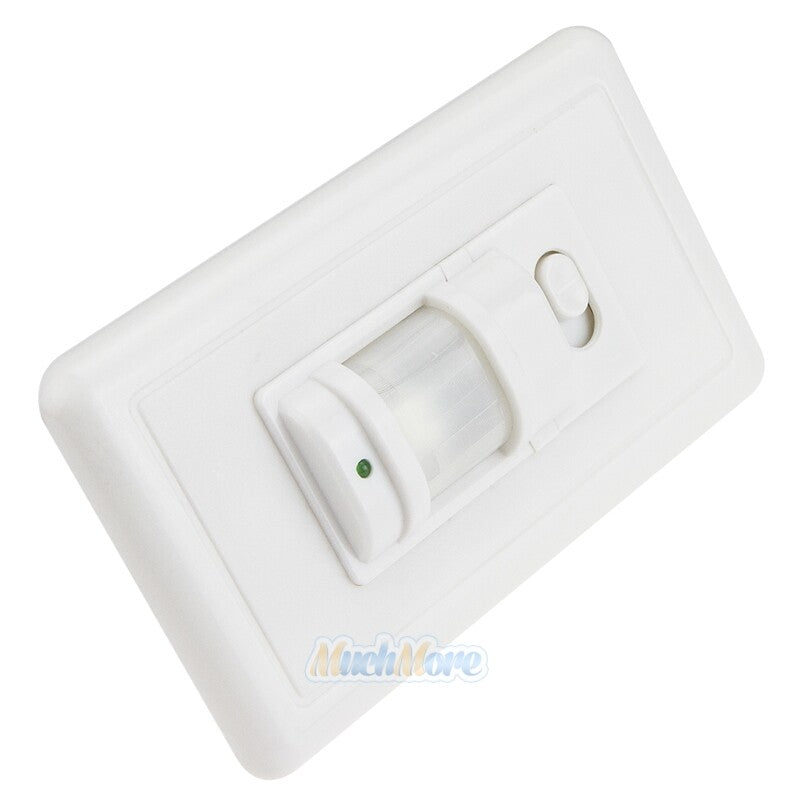

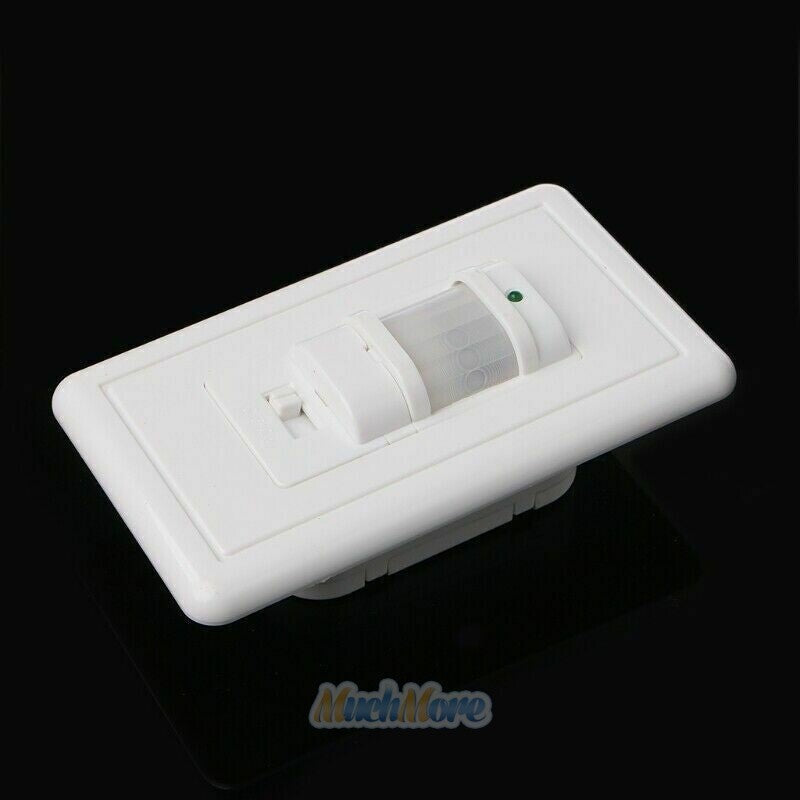

Automatic PIR Motion Sensor Light Switch, 180° Infrared Wall Switch, 110V

Automatically control compatible indoor lighting with this hardwired PIR motion sensor switch. The sensor detects body movement within its coverage area and switches the connected light on; after motion is no longer detected, it switches the light off following the selected delay.

This unbranded switch requires line, load, and neutral wiring. Its maximum electrical load and lighting-type ratings are not confirmed, so compatibility with LED, incandescent, fluorescent, dimmable, smart, motorized, or transformer-based loads cannot be guaranteed.

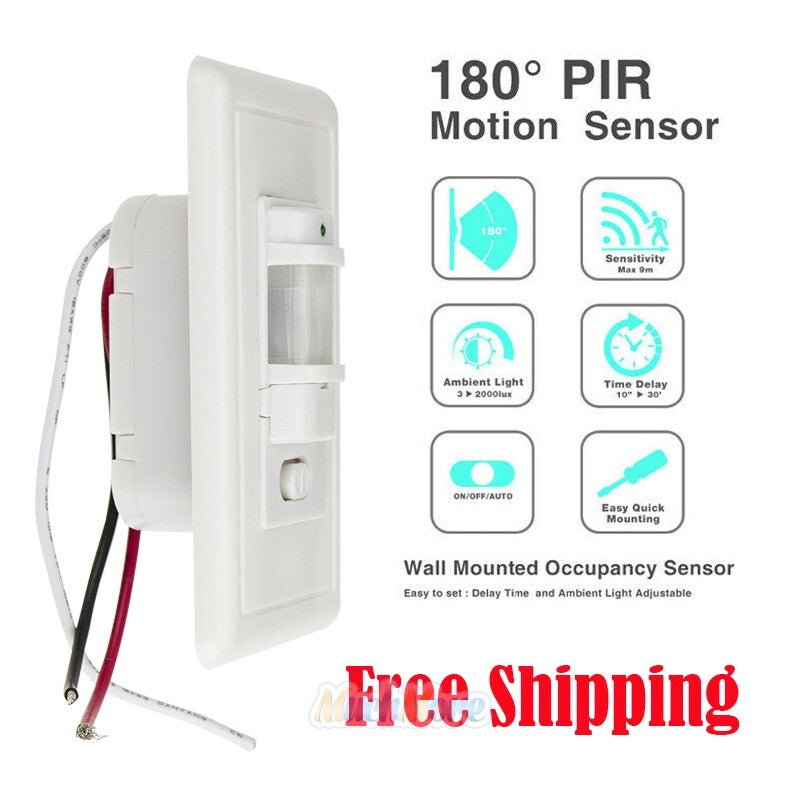

Key Features

• Automatic On/Off Control: Activates compatible lighting when motion is detected and turns it off after the adjustable delay.

• PIR Infrared Detection: Responds to infrared energy associated with moving people.

• 180° Detection Area: Provides a broad forward-facing sensing range.

• Up to 9 m Detection Distance: Stated maximum under approximately 22°C test conditions.

• Day/Night Detection: Light-control threshold is stated as less than 20 lux.

• Adjustable Time Delay: Approximately 8 seconds minimum to 7 minutes maximum.

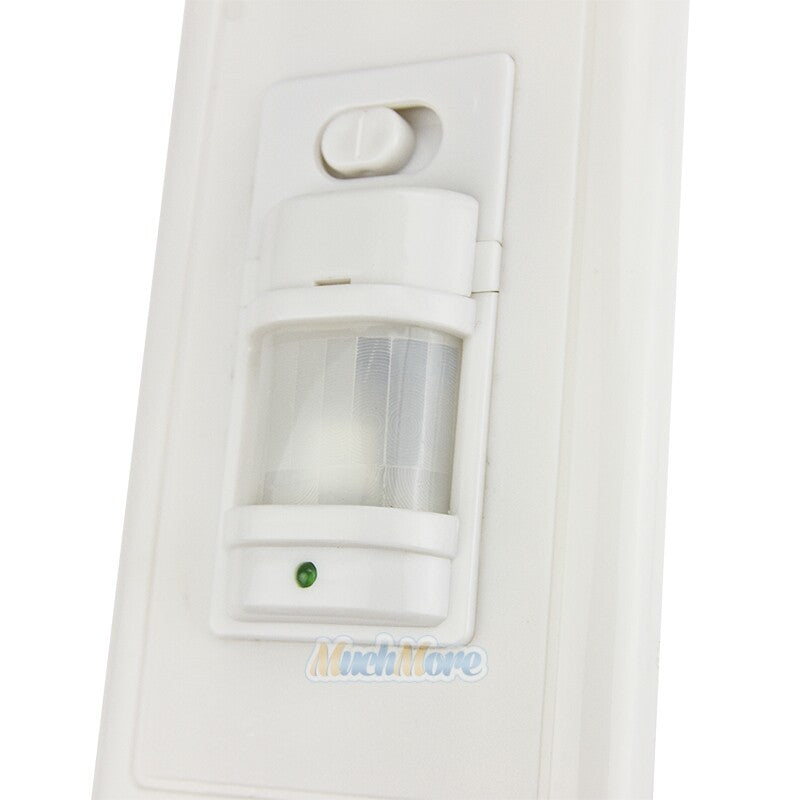

• Status Indicators: Includes power and motion-detection indication.

• Indoor Installation: Intended only for dry indoor wall-mounted applications.

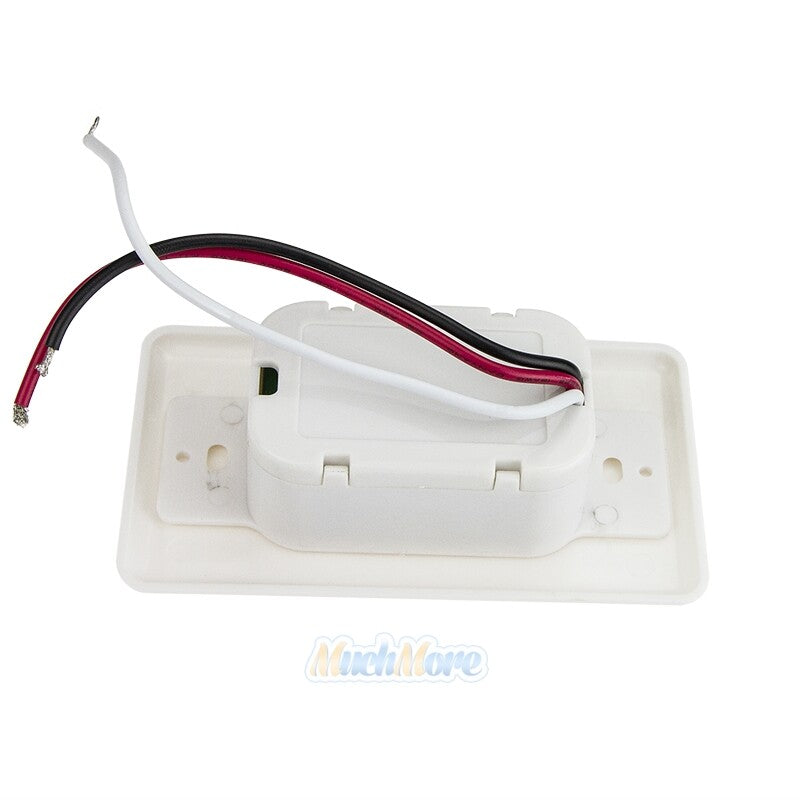

• Hardwired Connection: Requires line, load, and neutral conductors.

• Low Standby Consumption: Stated power consumption of 0.45 W.

Compatibility Notice

The original “compatible with all lighting” claim cannot be verified and is not included in this Listing.

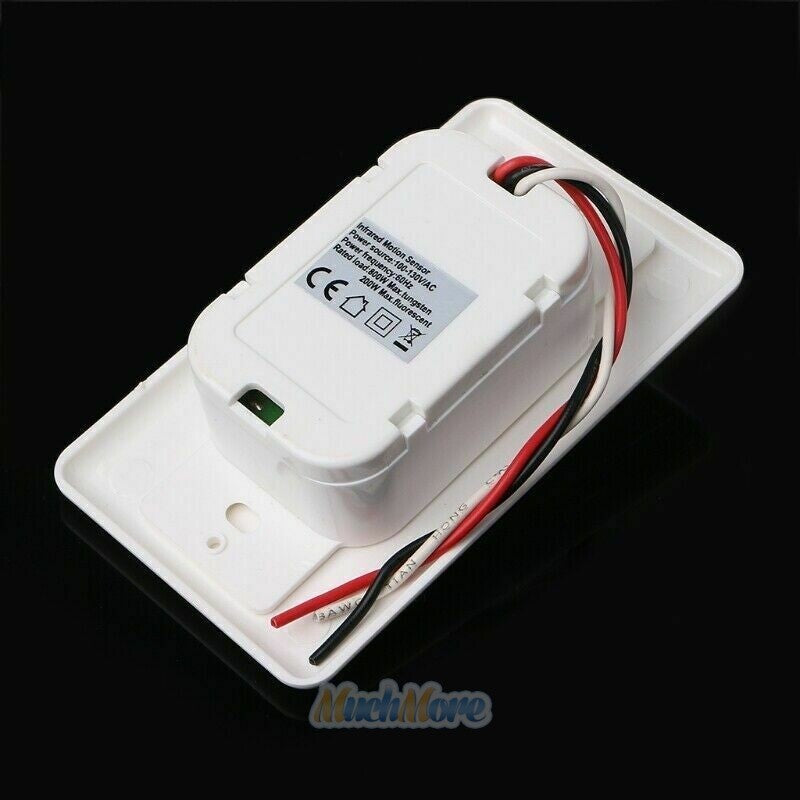

The maximum load rating and separate ratings for LED, incandescent, fluorescent, or other lighting technologies have not been confirmed. Before installation, a qualified electrician must verify:

• The load does not exceed the rating marked on the received switch.

• The supply is compatible with the stated AC 110V requirement.

• Line, load, and neutral conductors are available.

• The connected lighting technology is compatible with the switch.

• The enclosure, box, grounding, conductor size, and wiring method satisfy applicable electrical codes.

Do not install or energize the switch if its load rating is absent, illegible, or unsuitable for the connected fixture.

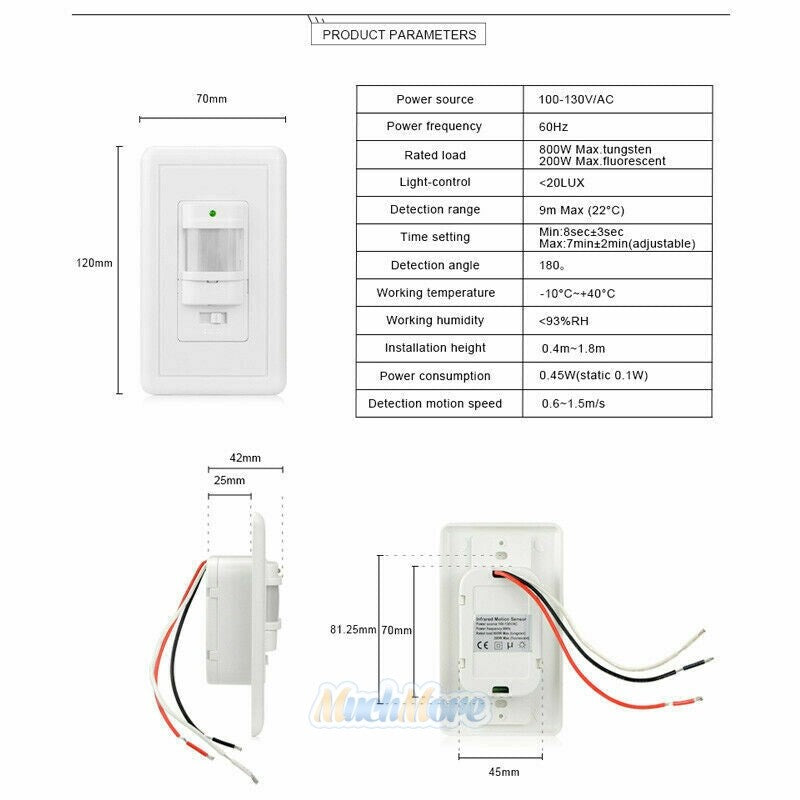

Product Specifications

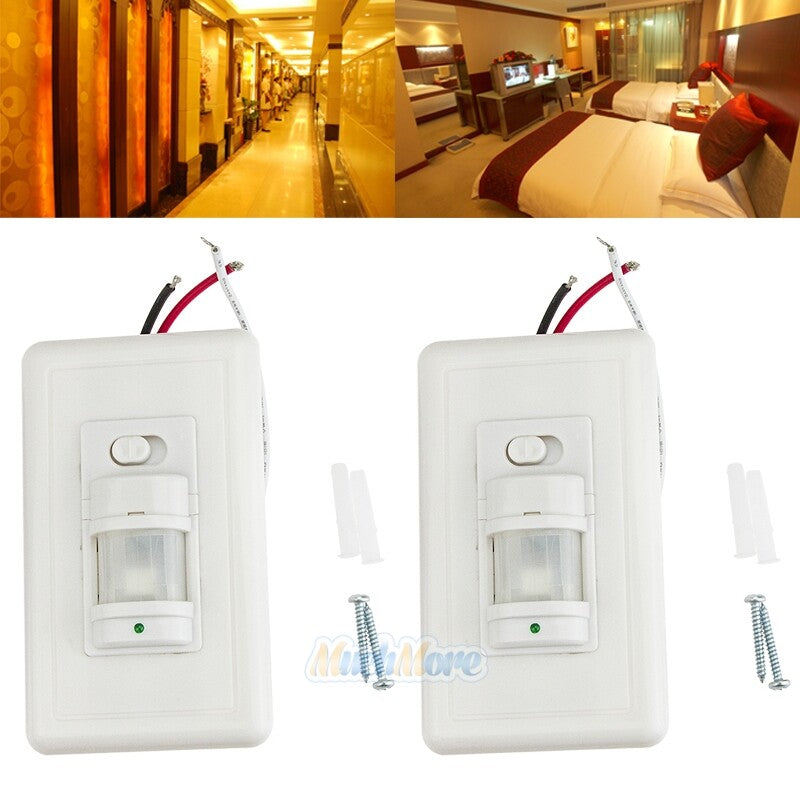

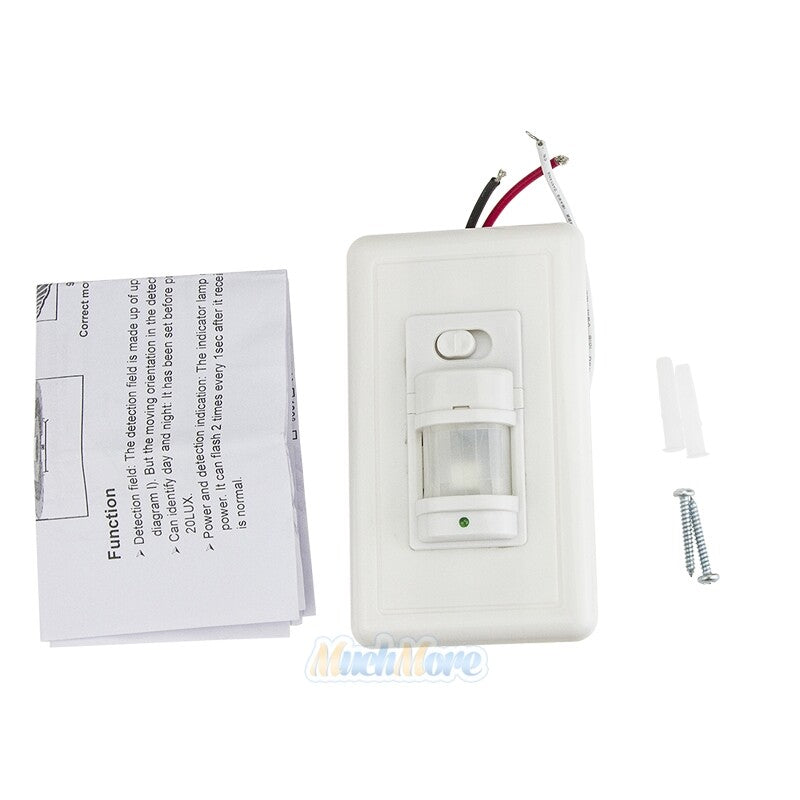

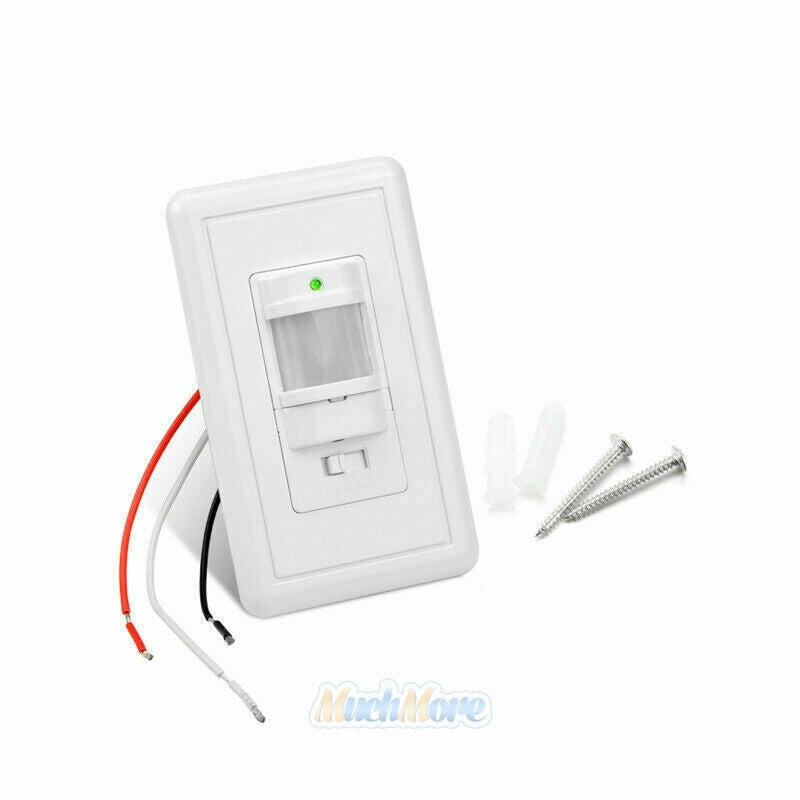

What’s Included

• 1 PIR infrared sensor switch

• 2 mounting screws

• 1 user manual

Wall box, wire connectors, cover plate, electrical cable, tools, and lighting fixtures are not confirmed as included.

Detection and Placement

The stated 9 m detection distance represents a maximum under specified conditions. Actual performance may vary based on:

• Installation height and sensor angle

• Room temperature

• Direction and speed of movement

• Furniture or other obstructions

• Heat sources, sunlight, or moving air

• The difference between body and ambient temperature

Movement across the sensor’s field of view may be detected more effectively than movement directly toward it. Do not aim the sensor toward heating vents, radiators, windows, reflective surfaces, or other sources that could cause false activation.

Installation and Safety

This is a 110V hardwired electrical device, not a plug-in accessory. Installation should be performed by a qualified electrician.

• Disconnect power at the circuit breaker before installation.

• Confirm de-energization with an appropriate tester before touching conductors.

• Follow the terminal markings and included instructions; do not rely solely on wire color.

• Do not install without the required neutral conductor.

• Do not exceed the load rating printed on the received unit.

• Use only in a suitable dry indoor electrical box.

• Do not use outdoors, in wet locations, or where condensation may occur.

• Do not install a damaged, cracked, overheated, or unmarked switch.

• Restore power only after all wiring and mounting have been checked.

• Stop using the switch if it becomes hot, produces an odor, buzzes abnormally, or causes flickering.

Electrical Safety Foundation International advises switching off the circuit breaker and testing conductors before touching them, and recommends using a qualified electrician when the work exceeds the installer’s skill level. ESFI electrical safety guidance

Certification Disclosure

No UL, ETL, CSA, or other safety-certification marking has been confirmed from the product or packaging. “No certification marking confirmed” does not establish whether the product has or has not undergone testing.

The buyer and installer should inspect the received device and determine whether its markings satisfy local regulations, insurance requirements, and the rules applicable to the installation location.

Frequently Asked Questions

Does this switch require a neutral wire?

Yes. The confirmed wiring configuration requires line, load, and neutral conductors.

Does it work with every type of light?

Compatibility with all lighting cannot be guaranteed because the maximum load and lighting-specific ratings are unknown. Check the switch markings and consult a qualified electrician before installation.

Can it be used with LED bulbs?

LED compatibility is not confirmed. The switch must display an appropriate LED load rating before being connected to an LED fixture.

Is it suitable for outdoor use?

No. It is intended only for dry indoor installations.

What is the maximum detection distance?

The stated maximum is 9 m under approximately 22°C test conditions. Actual range can be shorter.

Can the shutoff delay be adjusted?

Yes. The stated adjustment range is approximately 8 seconds to 7 minutes.

Does it work during daylight?

It includes automatic light-level detection with a stated threshold below 20 lux. Exact adjustment controls and daylight behavior should be verified from the included manual.

Is it safety certified?

No safety-certification marking has been confirmed. Inspect the received product before installation and verify that it meets local requirements.
