1-Kit Medium 8.25" × 10" High Tech Pet Wi-Fi Power Pet Door PX1-WFW with 3 Collars, Wall Tunnel and 12 Batteries

Give small and medium-sized pets controlled access through a compatible wall or household door with the High Tech Pet Medium Wi-Fi Power Pet Door Kit. The motorized panel responds to a compatible ultrasonic collar, opening for an authorized pet and closing after the pet passes through.

Use the compatible iOS or Android app to operate the door remotely, manage entry and exit permissions, create access schedules and review activity. This expanded kit includes three MS-5 collars, a telescoping aluminum wall tunnel and 12 replacement collar batteries.

Key Features

• Medium automatic electronic pet door

• 8.25" W × 10" H pet opening

• Designed for pets weighing up to 30 lb.

• Wi-Fi control through a compatible smartphone app

• Manual controls located on the door

• Activated by compatible ultrasonic pet collars

• Includes three MS-5 collars

• Includes 12 B-3V1A collar batteries

• Wall adapter tunnel included

• Supports installation in a compatible wall or door

• Four-way access control

• Unlimited custom access timers

• Adjustable indoor and outdoor sensor ranges

• Hold-open function

• Activity history by day, week, month or year

• Supported real-time notifications

• Automatic safety-retract function

• Gravity-assisted closing panel

• Automatic deadbolt locking

• Compatible with additional MS-5 and RX-10 collars

Four-Way Access Control

Select the access mode that fits your pet’s schedule:

• In Only

• Out Only

• Full In and Out Access

• Closed and Locked

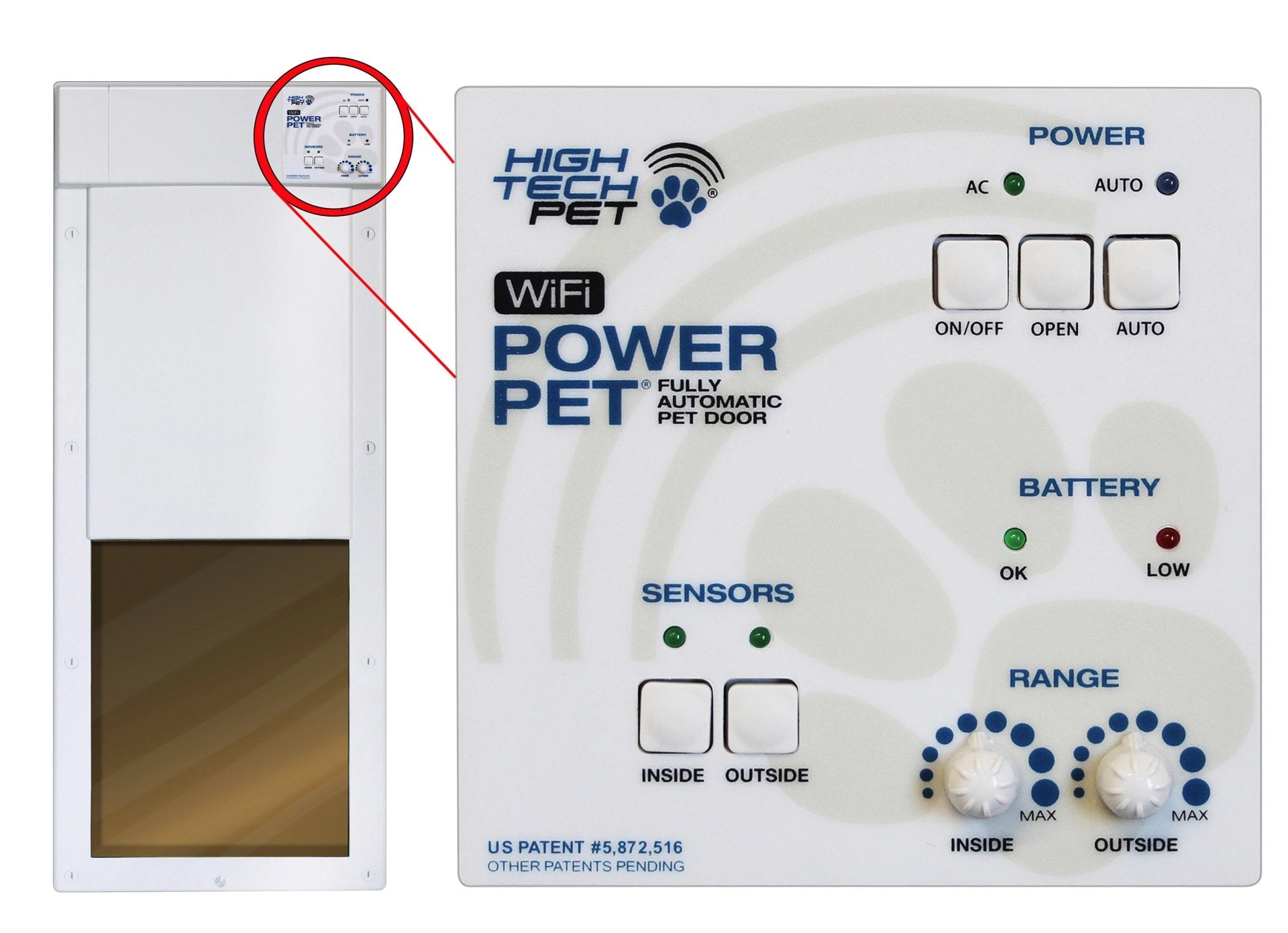

The indoor and outdoor sensors can be controlled independently through the app or the door’s front panel.

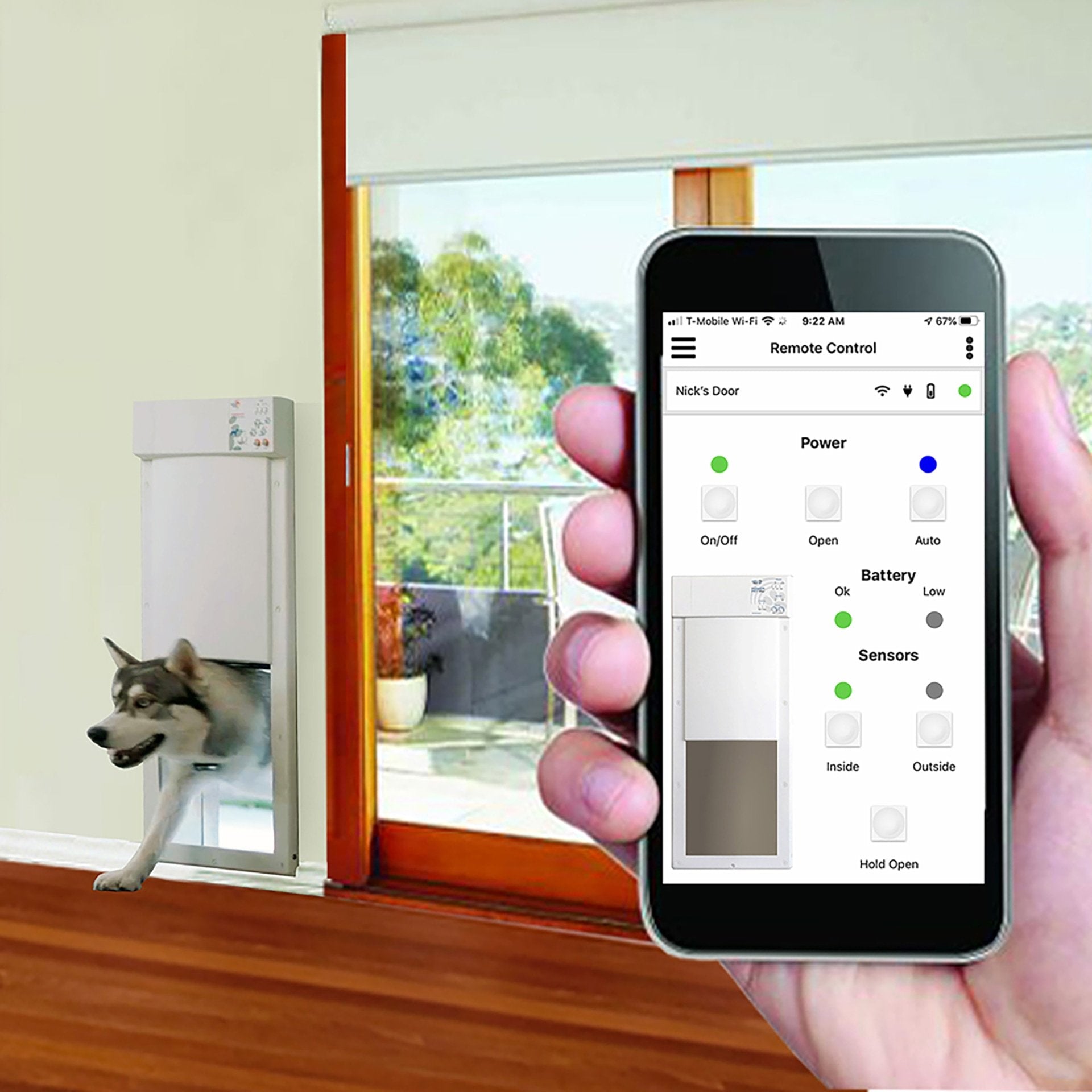

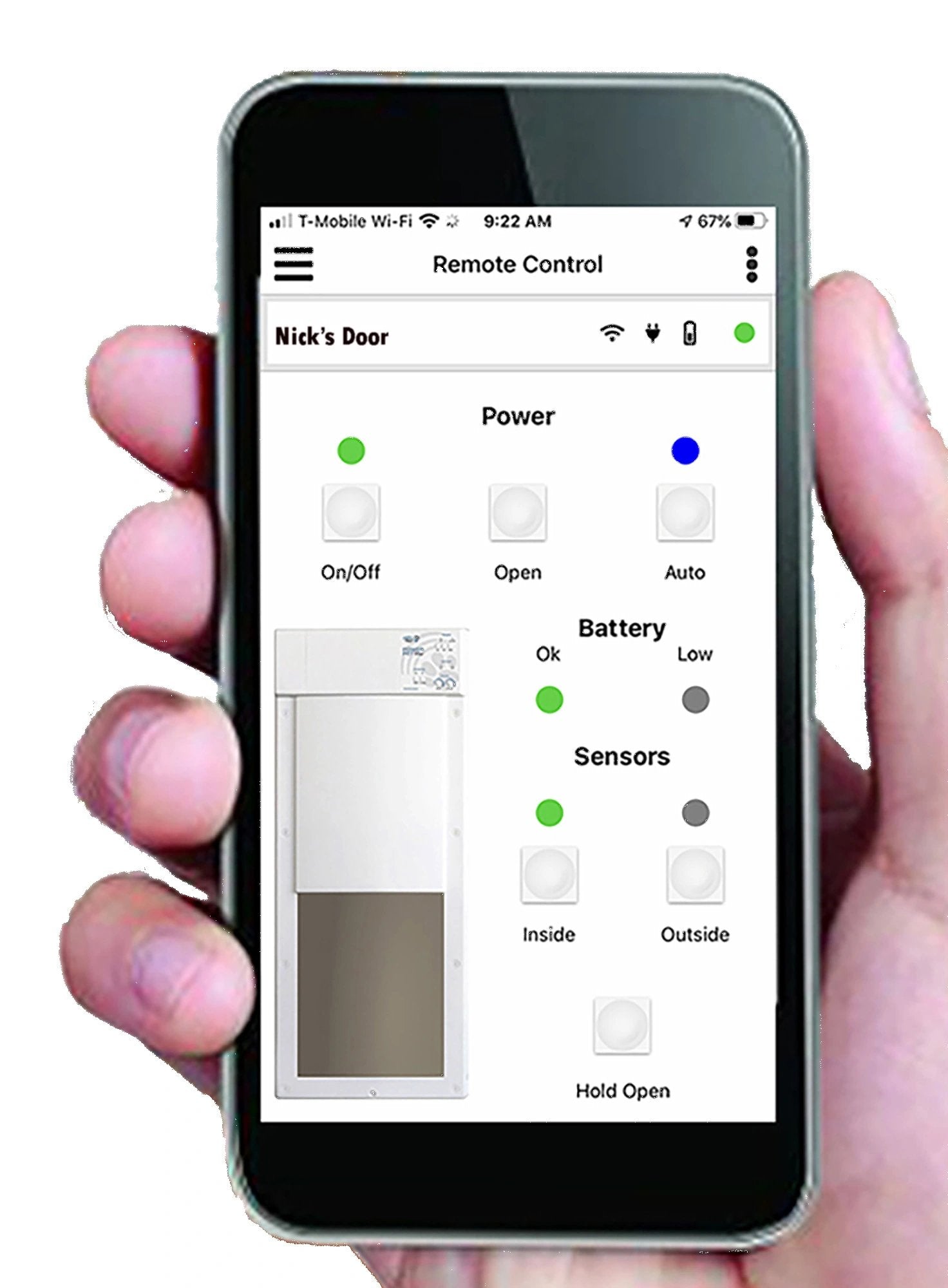

Wi-Fi App Controls

The compatible High Tech Pet mobile app allows users to:

• Open and close the door remotely

• Activate or deactivate the sensors

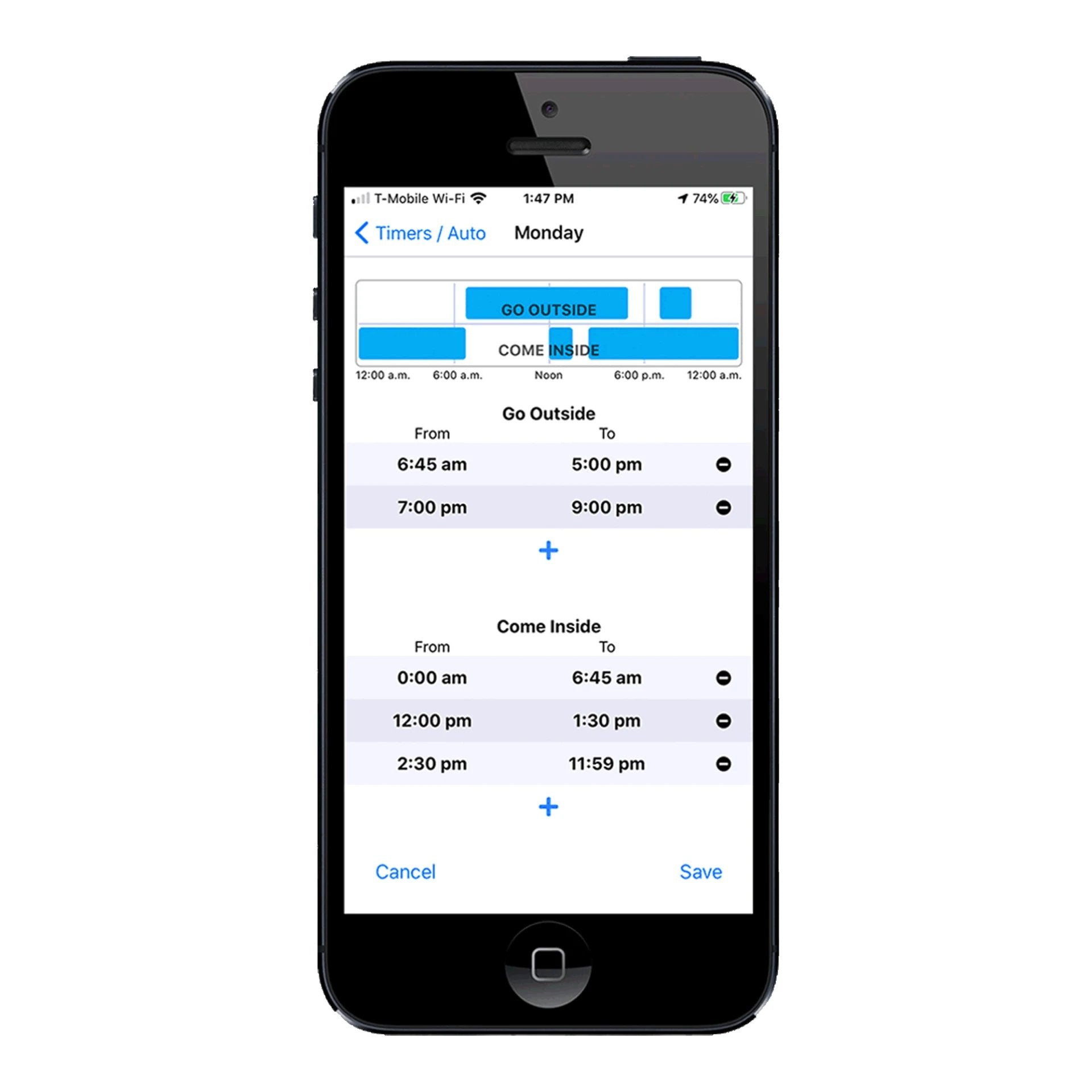

• Create customized weekly access schedules

• Set an unlimited number of access timers

• Select entry and exit permissions

• Adjust supported hold-open settings

• Review total door operations

• Review indoor and outdoor sensor activations

• Review manual-opening activity

• Receive supported activity or malfunction notifications

• Access updated operating instructions

• Receive supported firmware updates

Remote functions require a compatible mobile device and an active internet or cellular connection.

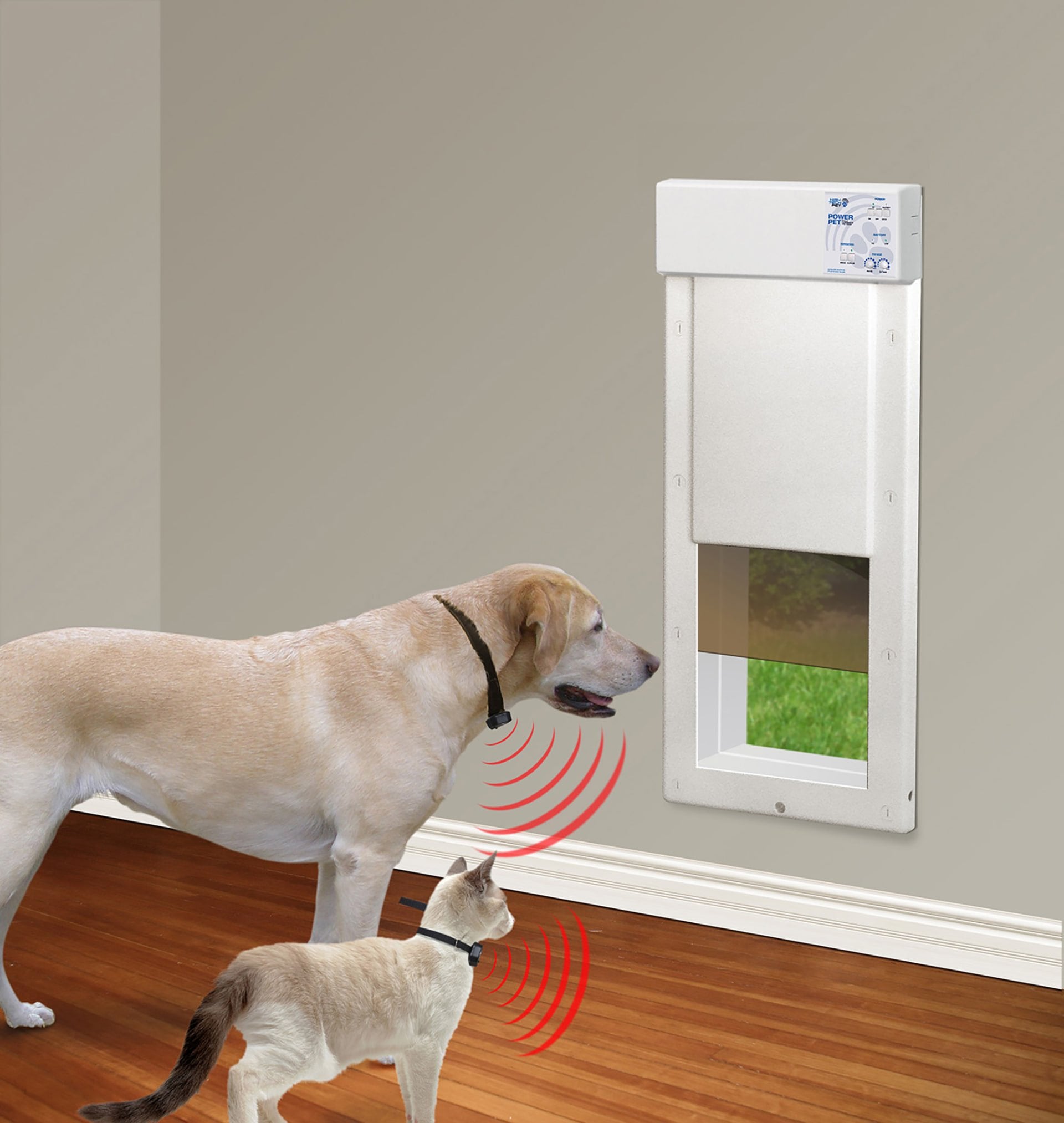

Collar-Activated Operation

The directional sensing system detects an authorized ultrasonic collar as the pet approaches the door. The adjustable sensor ranges help determine how close the pet must be before the panel opens.

The system is designed to avoid unnecessary activation when a pet is simply resting or moving beside the door. Additional compatible collars can be added for multi-pet households.

Automatic Closing and Locking

The sensing system keeps the lightweight panel open while it detects the collar signal. After the pet passes completely through the opening, the panel closes by gravity and the deadbolt engages.

If the descending panel encounters an obstruction, the safety-retract feature is designed to raise it again. Proper pet training and supervision remain important, especially during initial use.

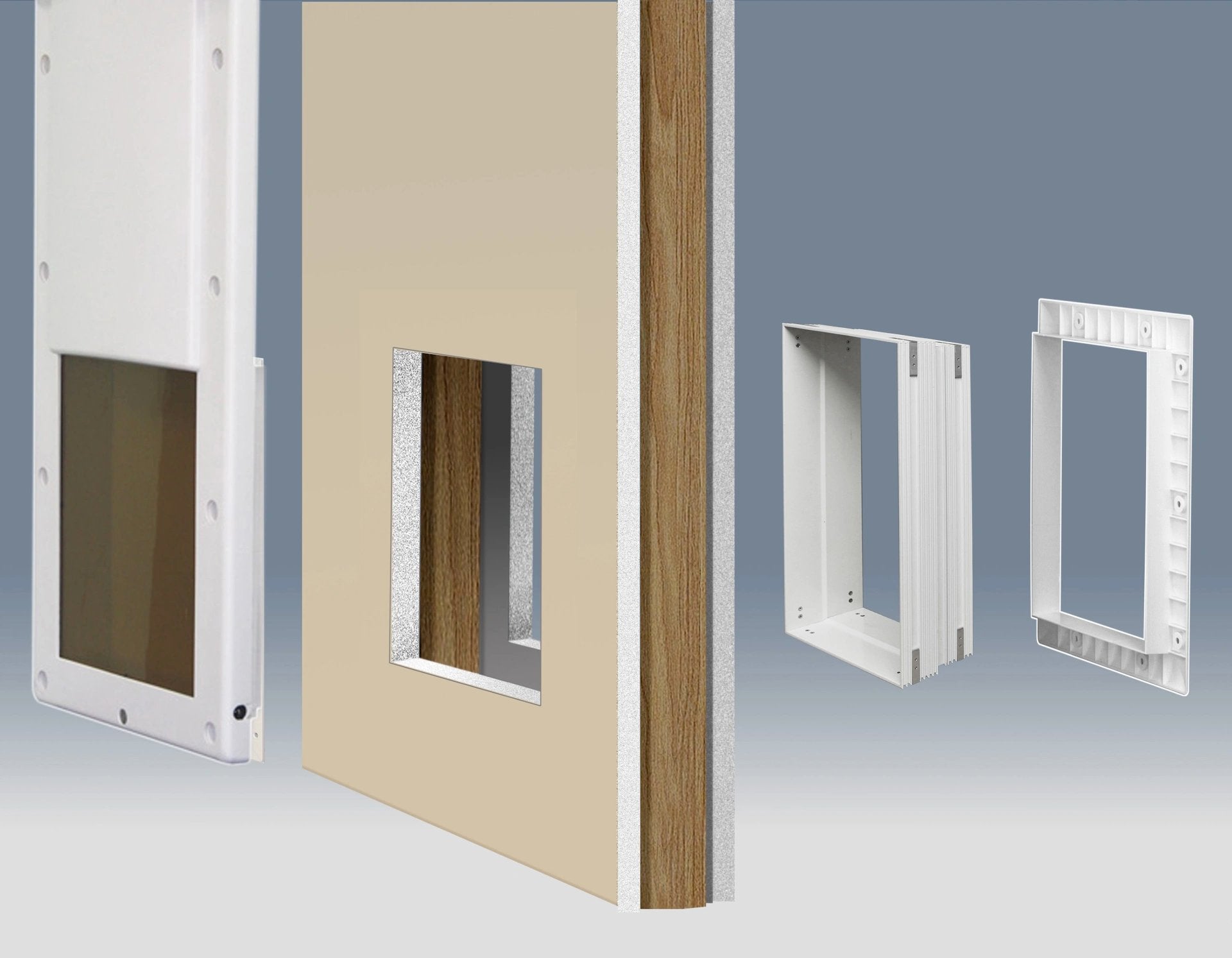

Wall or Door Installation

Wall Installation

The included telescoping aluminum wall tunnel helps form a finished passage through a compatible wall. It connects the interior pet-door assembly to the exterior frame and reduces the need to fabricate a separate tunnel.

Wall installation requires cutting an opening and securely attaching the pet door, tunnel and exterior frame. Professional installation may be advisable when wall construction, wiring, plumbing or structural conditions are uncertain.

Door Installation

The pet door can also be mounted in a compatible household door. The aluminum wall tunnel is not required for a standard door installation and can be retained for future use.

Review the supplied installation template and required clearances before cutting any opening.

Specifications

• Brand: High Tech Pet

• Product Line: Wi-Fi Power Pet

• Model: PX1-WFW

• Size: Medium

• Product Type: Automatic Electronic Pet Door Kit

• Compatible Pets: Dogs and Cats

• Recommended Pet Weight: Up to 30 lb.

• Pet Opening: 8.25" W × 10" H

• Overall Dimensions: 12" W × 2.5" D × 28.6" H

• Activation Method: Ultrasonic Pet Collar

• Included Collars: 3 MS-5 Collars

• Included Collar Batteries: 12 B-3V1A Batteries

• Access Modes: 4

• Custom Timers: Unlimited

• Mobile Compatibility: Compatible iOS and Android Devices

• Installation Types: Wall or Door

• Wall Tunnel: Included

• Locking System: Automatic Deadbolt

• Safety Feature: Automatic Panel Retraction When an Obstruction Is Detected

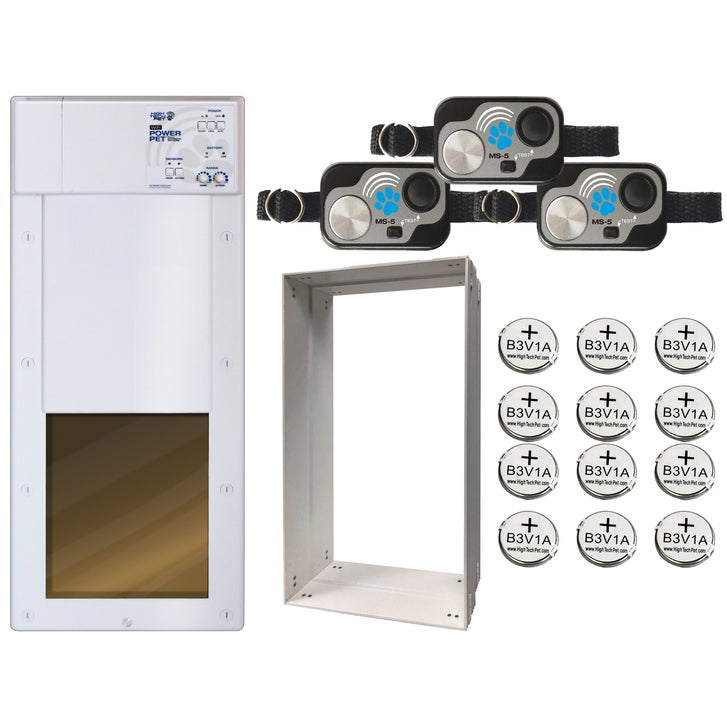

What’s Included

• 1 medium High Tech Pet Wi-Fi Power Pet Door

• 3 MS-5 ultrasonic pet collars

• 1 telescoping wall adapter tunnel kit

• 12 B-3V1A collar batteries

• Exterior frame and standard installation components supplied with the pet door

• Product instructions

Installation tools and additional building materials are not specified as included.

Installation Considerations

Before purchasing or cutting an opening:

• Measure each pet’s shoulder height and body width

• Confirm that the 8.25" × 10" opening provides comfortable clearance

• Review the installation template

• Check the wall or door for wiring, plumbing and structural components

• Confirm that the mounting surface is compatible

• Follow all manufacturer installation instructions

• Use a qualified installer if the wall construction is uncertain

Training Your Pet

Introduce the automatic door gradually:

1. Let the pet become familiar with the door while it is inactive.

2. Use the hold-open option during supervised training when appropriate.

3. Reward the pet for approaching and passing through calmly.

4. Introduce the panel’s automatic movement gradually.

5. Confirm reliable collar detection before allowing independent use.

Do not force a frightened pet through the opening.

Ideal For

• Dogs and cats weighing up to 30 lb.

• Multi-pet households

• Homes requiring scheduled pet access

• Owners who want remote door controls

• Compatible wall or door installations

• Pets needing separate entry and exit permissions

• Households wanting activity history and supported alerts

Why It Stands Out

This medium Wi-Fi Power Pet bundle includes the components needed for a multi-pet wall or door installation: three ultrasonic collars, 12 collar batteries and an aluminum wall tunnel. Four-way access control, unlimited schedules, activity reporting and remote app operation offer substantially more control than a conventional pet flap.

Important Information

• Measure every pet before ordering

• The 30 lb. rating is a general sizing guideline; actual fit depends on the pet’s body width and shoulder height

• The door opens automatically only for pets wearing a compatible collar

• Wi-Fi and internet access are required for remote app functions

• Manual front-panel controls remain available if the app cannot be used

• Network interruptions may affect remote operation and notifications

• This system is not a substitute for responsible pet supervision

• Monitor weather, wildlife, traffic and other outdoor hazards

• Cutting a wall or household door is required for installation

Frequently Asked Questions

What is the pet opening size?

The usable opening measures approximately 8.25" W × 10" H.

What size pets can use this door?

The medium PX-1 model is intended for pets weighing up to approximately 30 lb., provided they fit comfortably through the opening.

How many collars are included?

The kit includes three MS-5 ultrasonic pet collars.

Are collar batteries included?

Yes. Twelve B-3V1A collar batteries are included.

Can additional pets use the door?

Yes. Additional compatible MS-5 or RX-10 collars can be purchased separately.

Is the wall tunnel included?

Yes. A telescoping aluminum wall adapter tunnel is included.

Can it be installed in a regular door?

Yes. The unit supports installation in a compatible household door without using the wall tunnel.

Can the door work without the mobile app?

Yes. Core controls are available through the physical front panel. Remote operation and connected features require the compatible app and network access.
