PTO Drive Shaft Series 4, 1-3/8 in. 6-Spline Tractor End x Round Implement End, Adjustable 43–61 in., CE Certified
Transfer power efficiently from your tractor to PTO-driven implements with this Series 4 PTO Drive Shaft. Designed with a standard 1-3/8-inch 6-spline tractor connection and a round implement end, this telescoping driveline fits a wide range of compatible agricultural equipment, including rotary tillers, rotary cutters, mowers, brush cutters, wood chippers, and fertilizer spreaders.
Constructed from carburized alloy steel and heavy-duty steel tubing, the shaft is engineered for durability, reliable power transmission, and adjustable length to accommodate different equipment setups.
Key Features
Series 4 PTO drive shaft
Standard 1-3/8 in. × 6-spline tractor end
1-3/8 in. round implement end

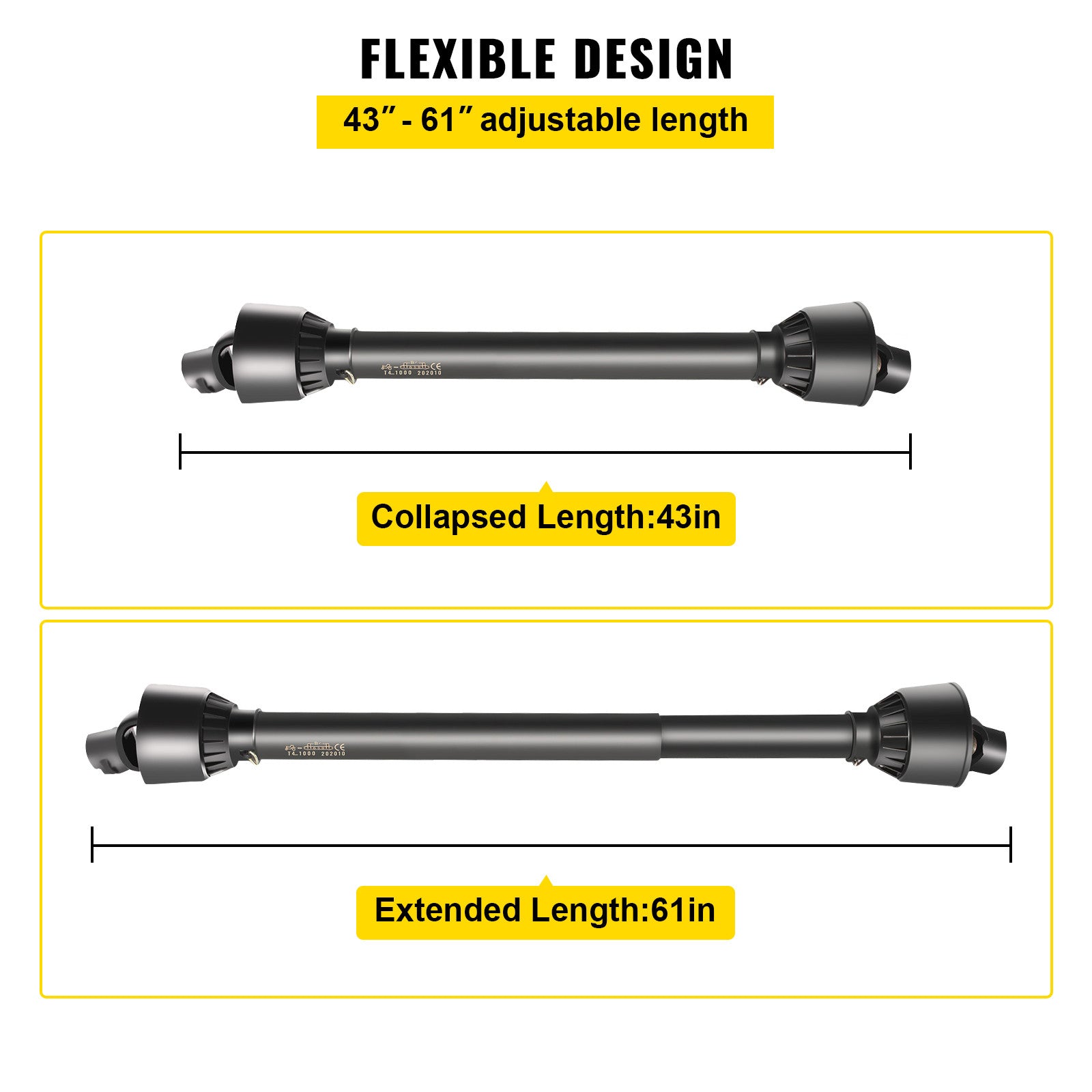

Adjustable telescoping length from 43 in. to 61 in.

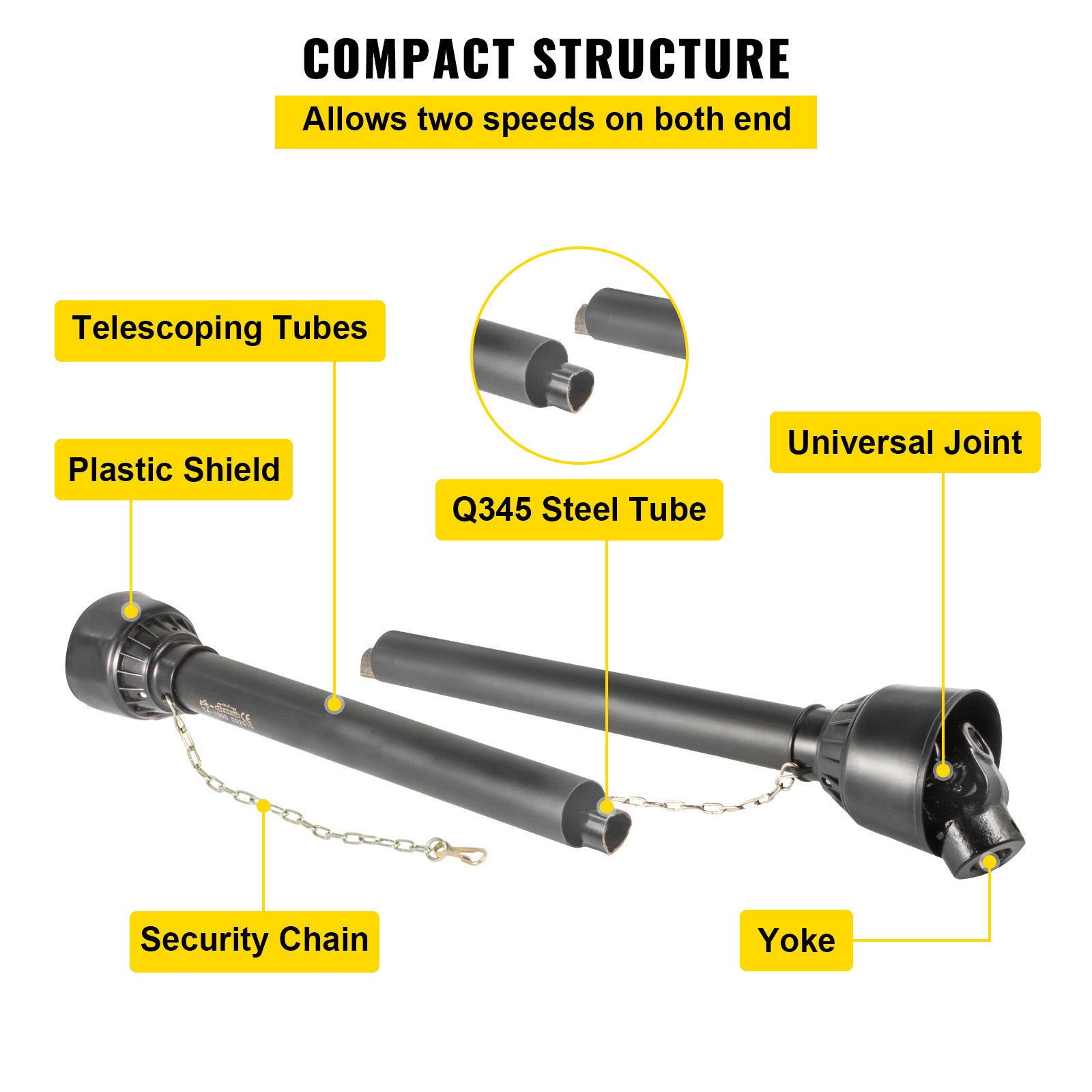

Constructed from 20CrMnTi carburized steel universal joints
Heavy-duty Q345 steel telescoping tube
Protective plastic safety shield
Safety chain included
Black corrosion-resistant finish
CE certified
Direct replacement for compatible PTO drivelines
Suitable for multiple PTO-powered agricultural implements
This Series 4 PTO shaft is designed to provide dependable power transfer between tractors and compatible PTO-driven equipment. The telescoping design allows the shaft length to be adjusted between 43 and 61 inches, making it adaptable to a variety of implement configurations.
Constructed with carburized 20CrMnTi steel universal joints and a Q345 steel tube, the driveline is built for demanding agricultural applications. The included plastic safety shield and safety chain help provide additional protection during operation, while the CE certification reflects compliance with applicable product standards.
Its standard 1-3/8-inch 6-spline tractor connection makes it compatible with many PTO-powered implements that use the same connection size.
Frequently Asked Questions
What are the connection sizes?

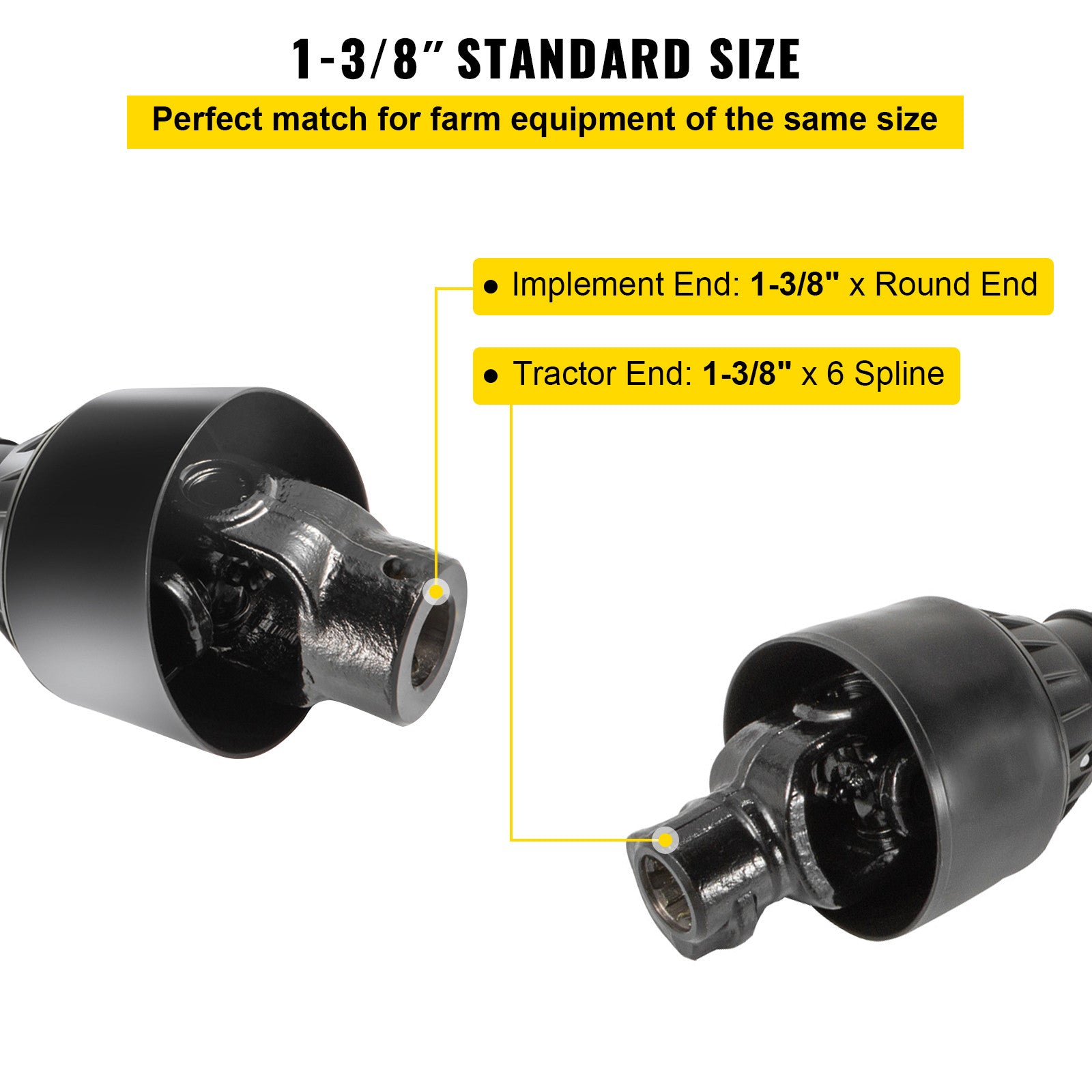

The tractor end uses a standard 1-3/8-inch 6-spline connection, while the implement end features a 1-3/8-inch round connection.
What is the adjustable length range?

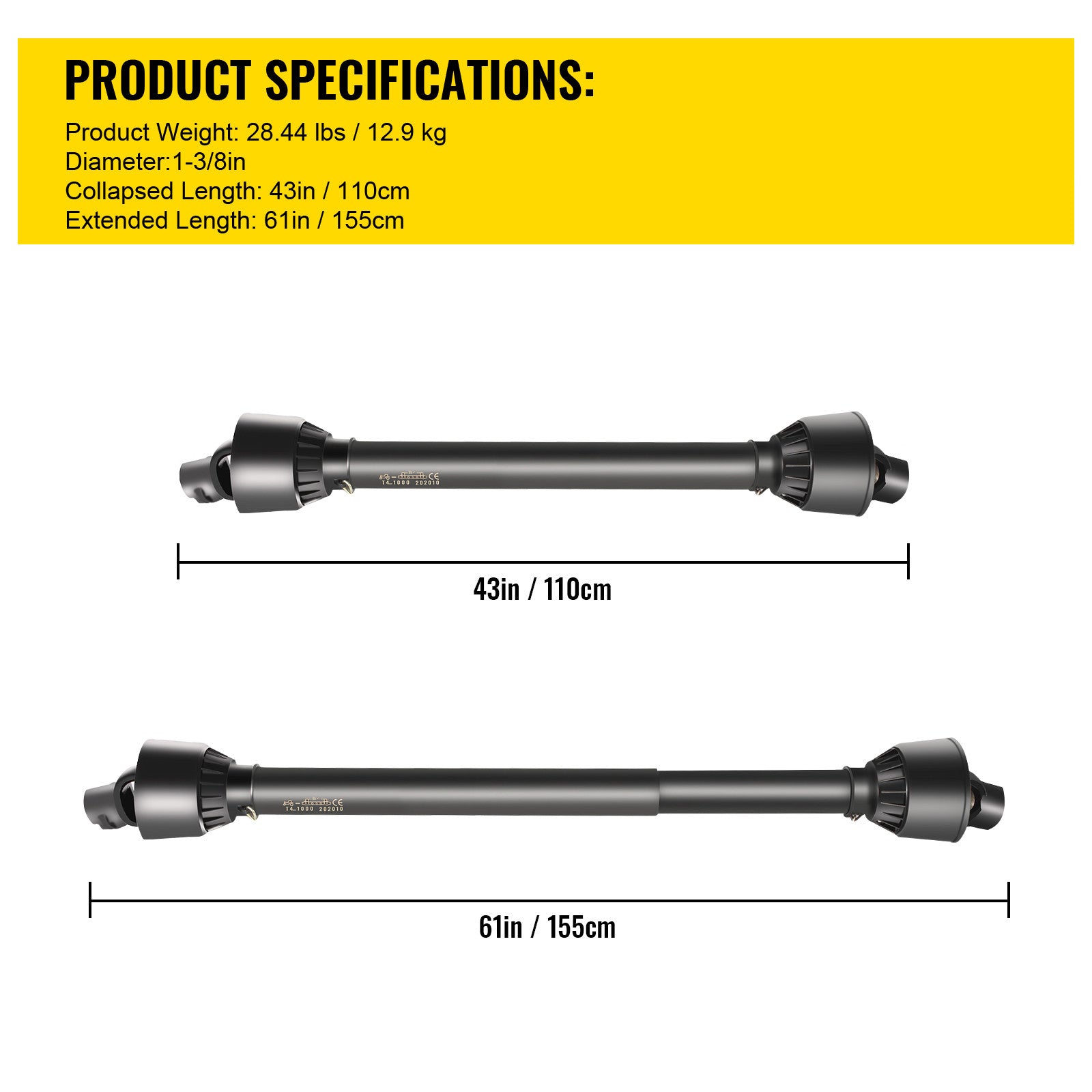

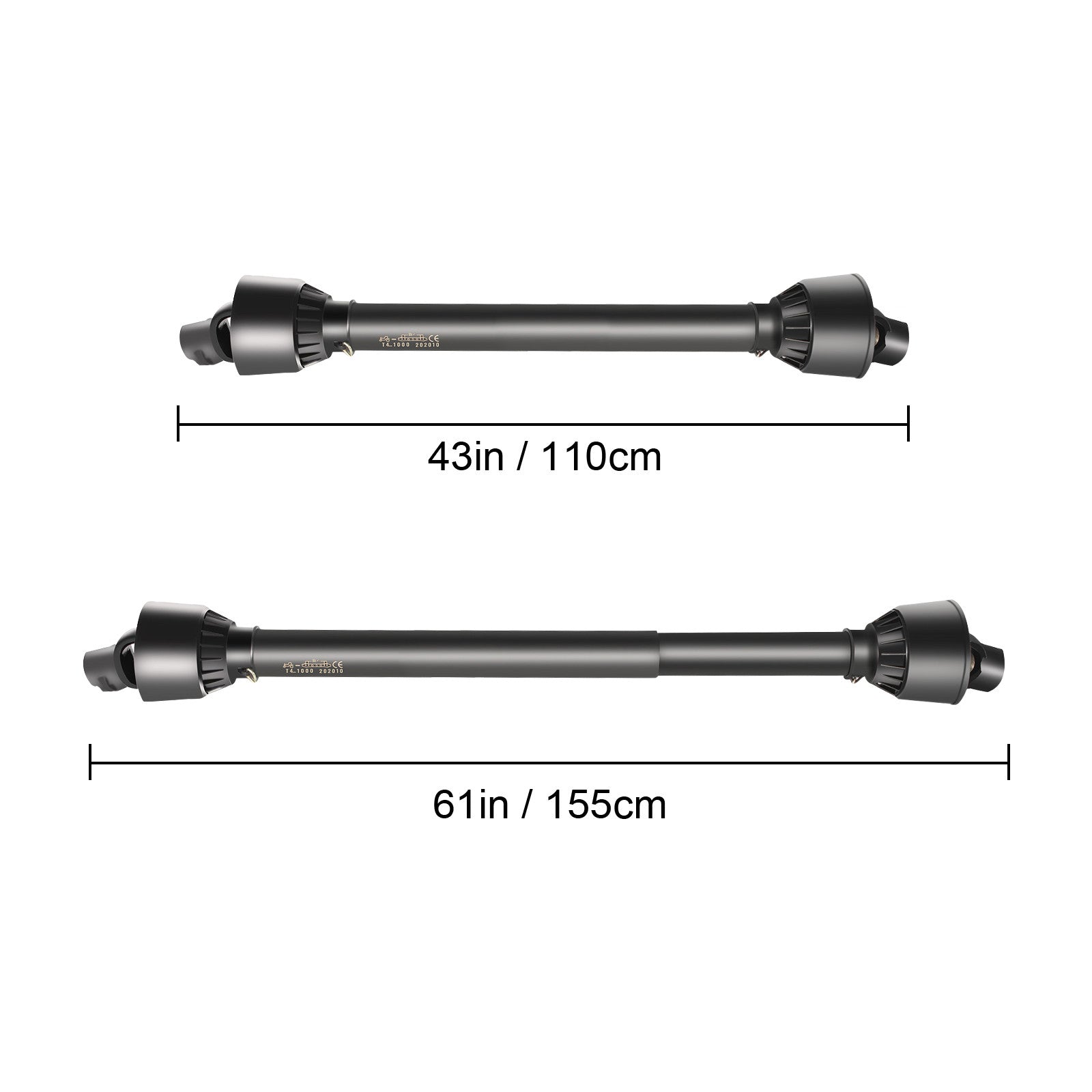

The PTO shaft adjusts from 43 inches (1100 mm) when compressed to 61 inches (1550 mm) when fully extended.
What horsepower is this PTO shaft rated for?

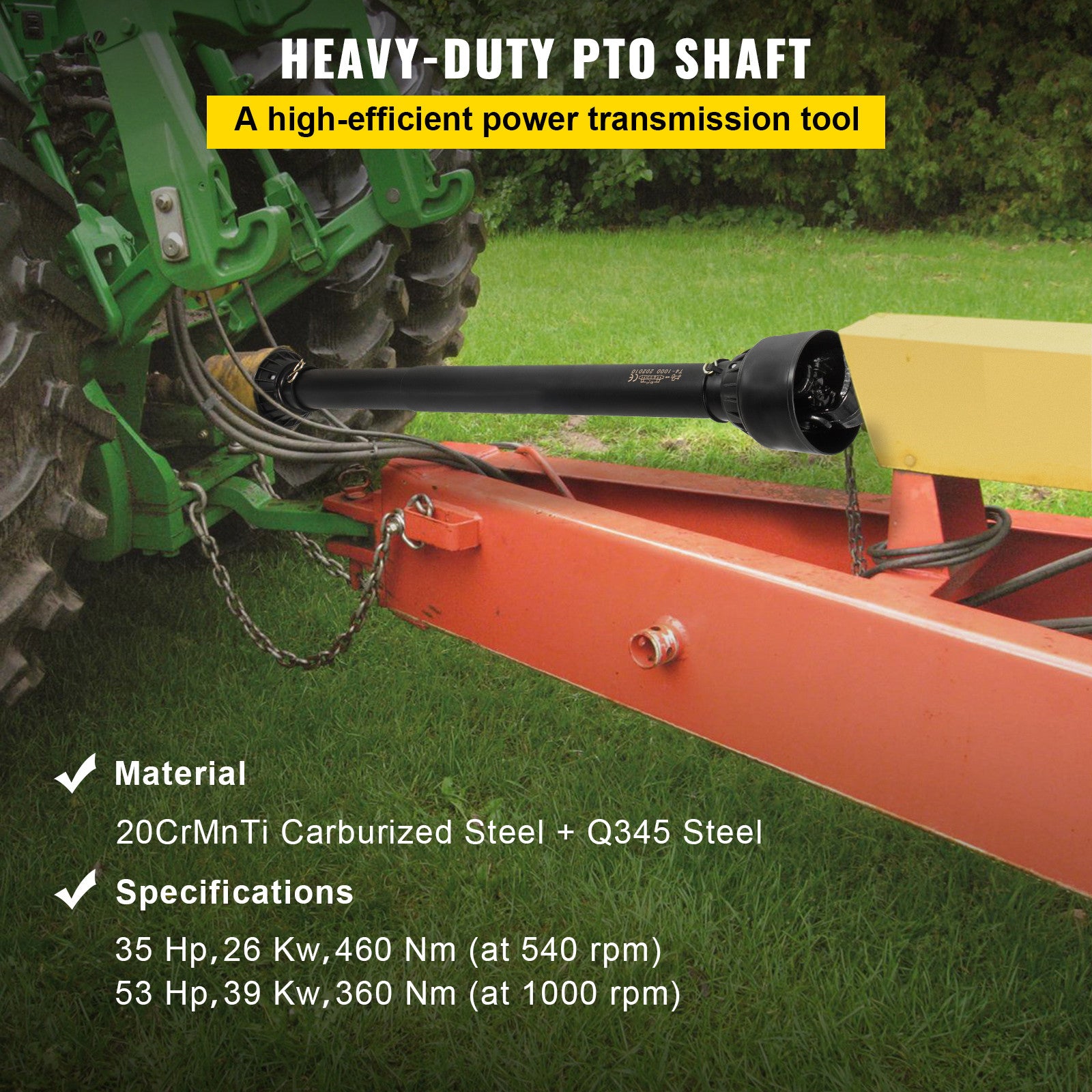

The shaft is rated for 35 HP (26 kW) at 540 RPM and 53 HP (39 kW) at 1000 RPM.
What materials are used in the shaft?
The universal joints are made from 20CrMnTi carburized steel, the telescoping tube is made from Q345 steel, and the shaft includes a protective plastic safety shield.
Is the shaft CE certified?
Yes. The driveline is CE certified.
Can the shaft be shortened if necessary?

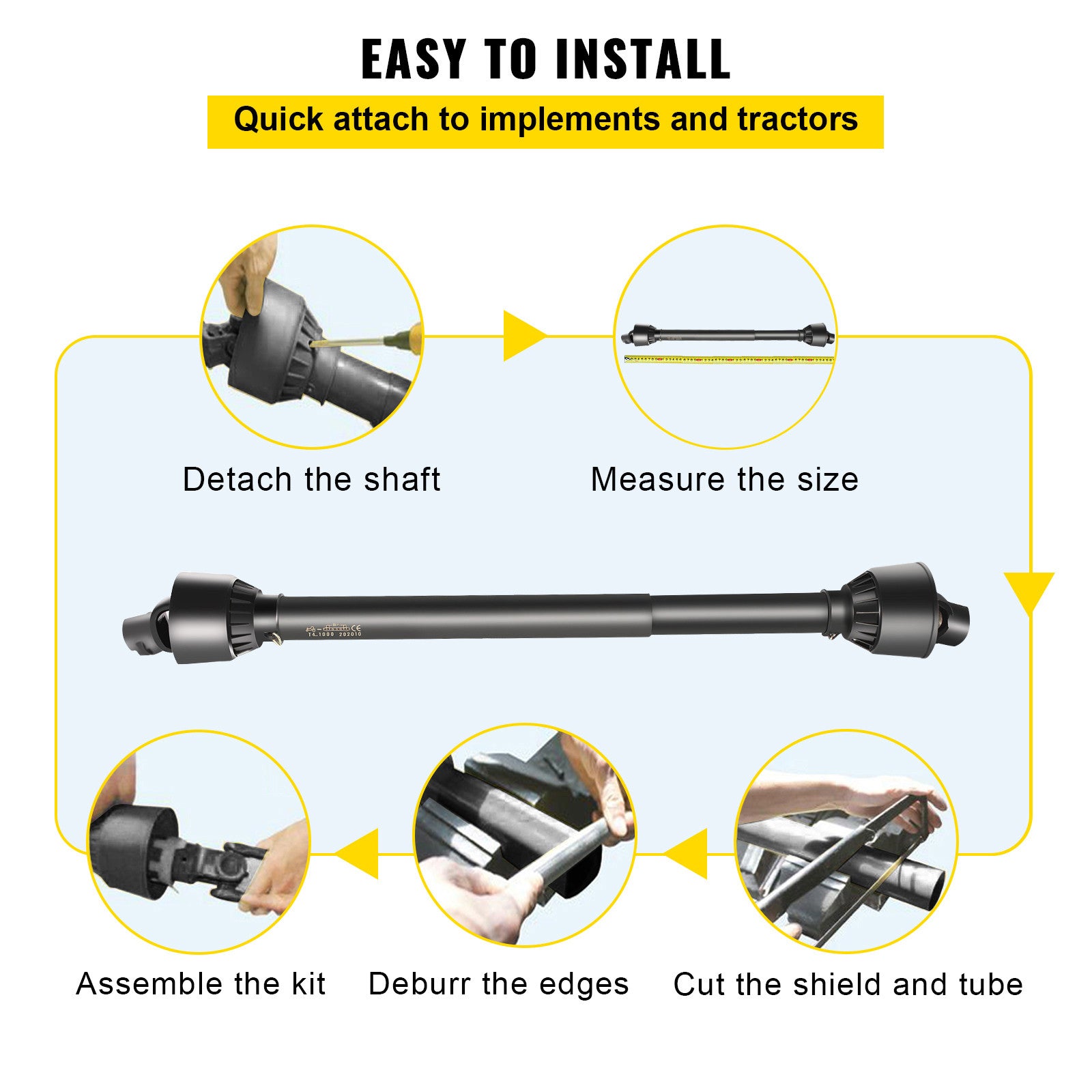

Yes. The manufacturer indicates the shaft can be cut to the required length. Follow the instructions in the user manual carefully and deburr the cut edges after trimming.
What types of equipment is this PTO shaft compatible with?
It is intended for compatible PTO-powered implements such as rotary tillers, rotary cutters, brush cutters, mowers, wood chippers, and fertilizer spreaders using matching connection sizes.
Does the package include installation accessories?
The package includes the PTO drive shaft and a user manual.
