Reolink NVS8-8MD84TB 4K Security System with 8 PoE Dome Cameras, 4TB NVR & 12-Camera Expansion

Monitor your home or business with the Reolink NVS8-8MD84TB security system. Eight wired PoE dome cameras capture 4K video at up to 20 frames per second, while the included NVR stores recordings locally on a preinstalled 4TB hard drive without a required recording subscription.

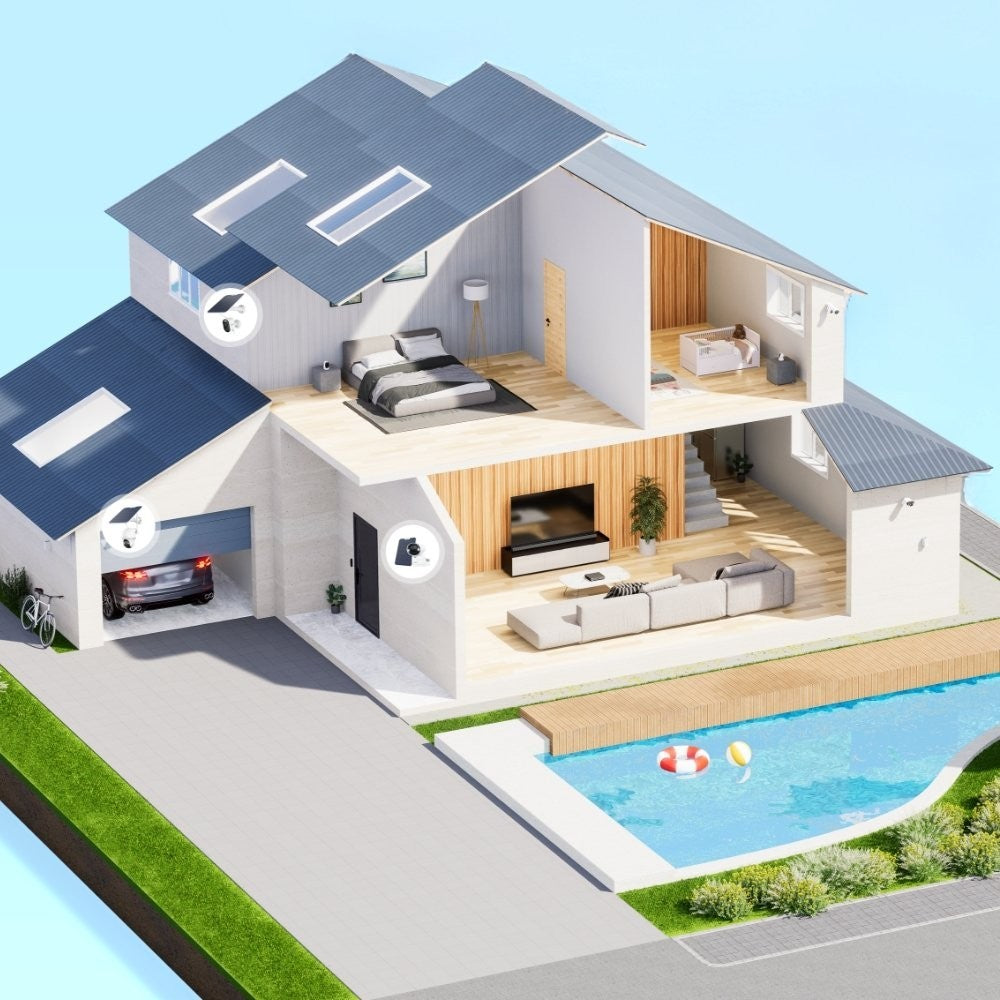

Person, vehicle, and animal detection helps filter motion alerts. Perimeter protection adds line-crossing, zone-intrusion, and loitering notifications, while heat mapping helps visualize activity patterns. Expand the system with up to four compatible Reolink battery-powered Wi-Fi cameras for a total of 12 cameras.

Key Features

• Eight 4K Dome Cameras: Capture 8MP video at 3840 × 2160 resolution and up to 20 fps.

• Expandable 8+4 System: Supports eight wired PoE cameras plus up to four compatible battery-powered Wi-Fi cameras, sold separately.

• 4TB Local Storage: A preinstalled hard drive supports recording without a required subscription.

• Smart Object Detection: Identifies people, vehicles, and animals to help reduce unwanted alerts.

• Perimeter Protection: Configure line-crossing, zone-intrusion, and zone-loitering rules for selected areas.

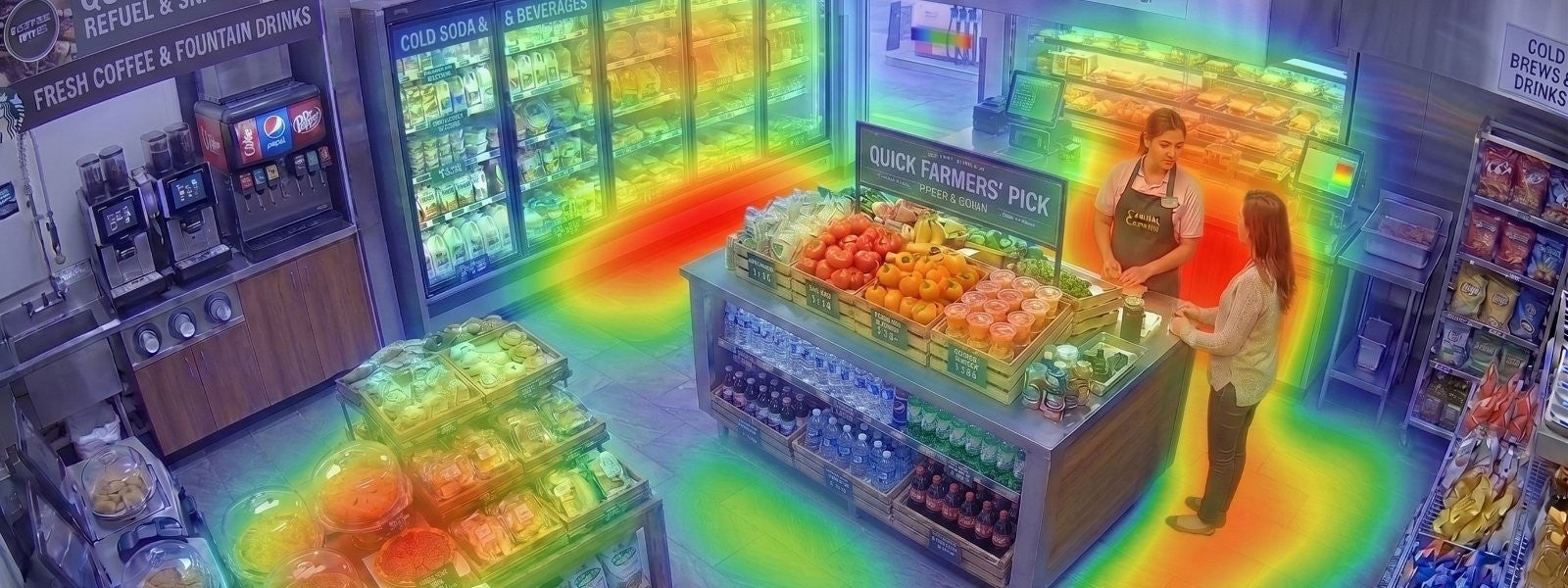

• Activity Heat Mapping: Displays motion patterns as a color-coded overlay to help identify frequently used areas.

• Two Night Vision Options: Use spotlights for color footage or infrared night vision for visibility up to 100 feet.

• Two-Way Audio: Built-in microphones and speakers support listening and speaking through the system.

• Spotlights and Sirens: Configure motion-triggered responses or activate deterrent features through supported controls.

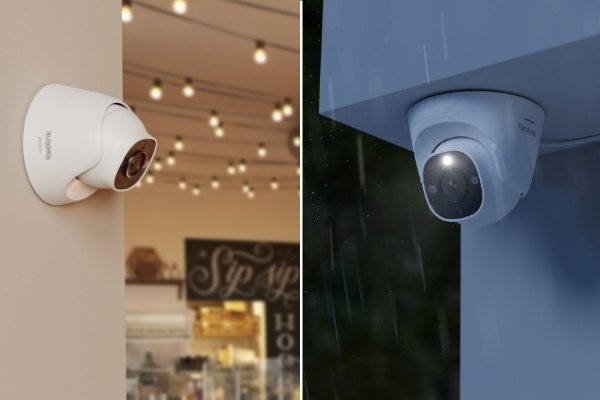

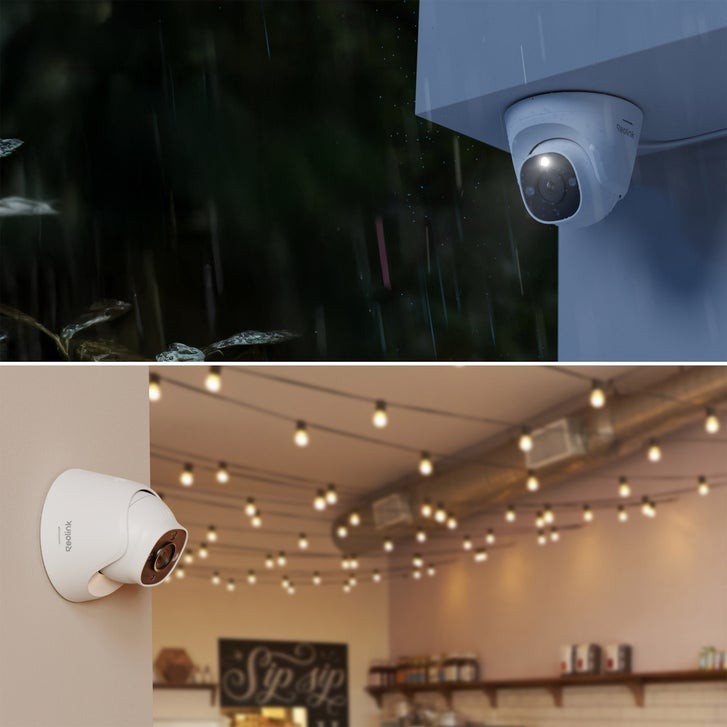

• IP67-Rated Cameras: Metal housings provide weather protection for indoor and outdoor installation.

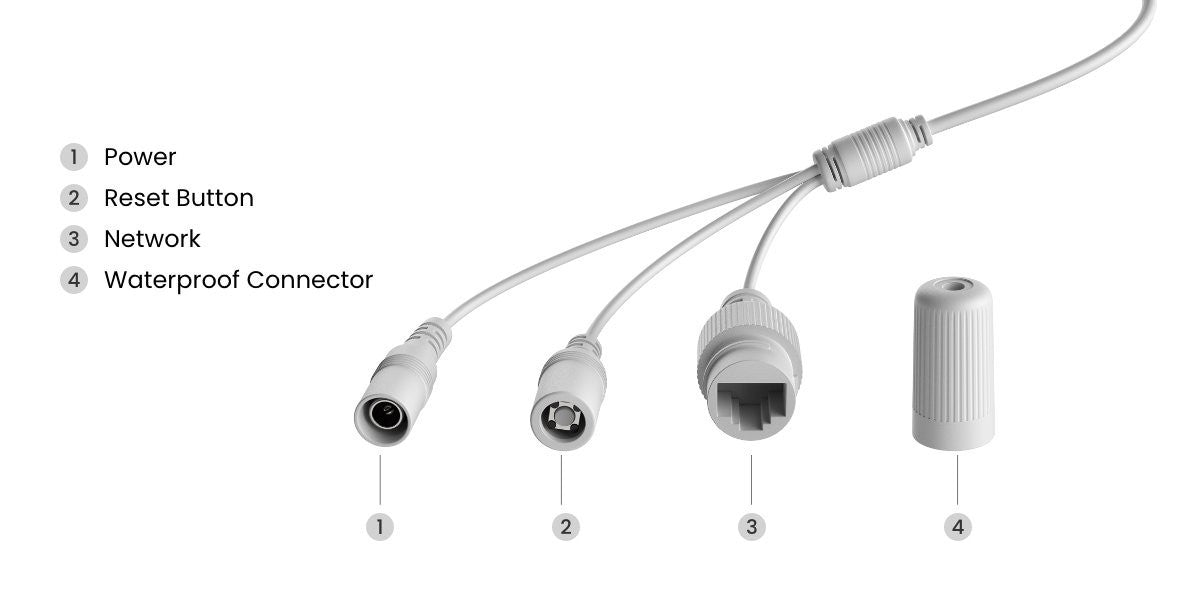

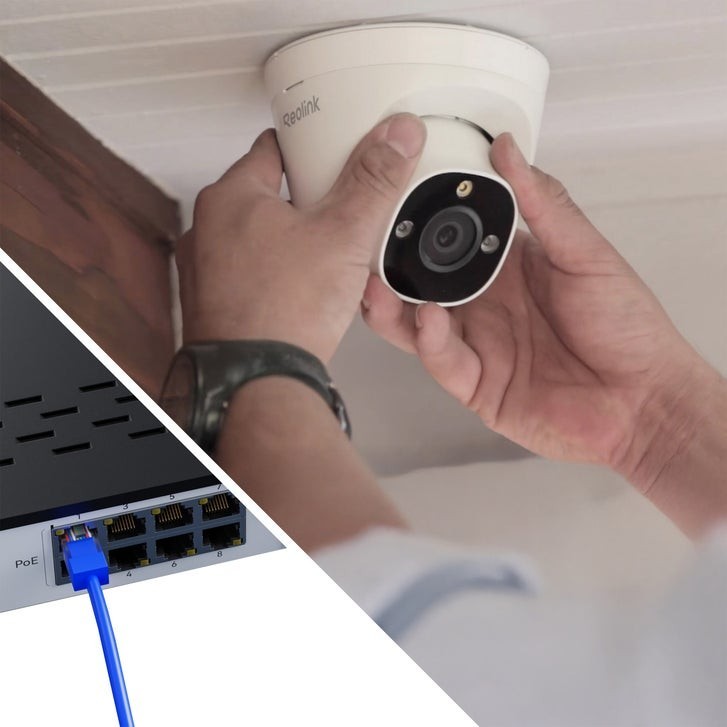

• Single-Cable PoE Connections: Ethernet cables carry camera power and video to the NVR.

• Flexible Recording and Playback: Choose continuous, scheduled, or motion-triggered recording and filter saved footage by date or event type.

Specifications

System & NVR

• Brand: Reolink

• Model: NVS8-8MD84TB

• Included Cameras: 8 wired dome cameras

• Expansion Configuration: 8 PoE cameras plus up to 4 compatible battery Wi-Fi cameras

• Included Storage: Preinstalled 4TB SATA hard drive

• Listed Maximum Storage: 16TB total; up to 8TB per supported drive

• Recording Options: Continuous, scheduled, and motion triggered

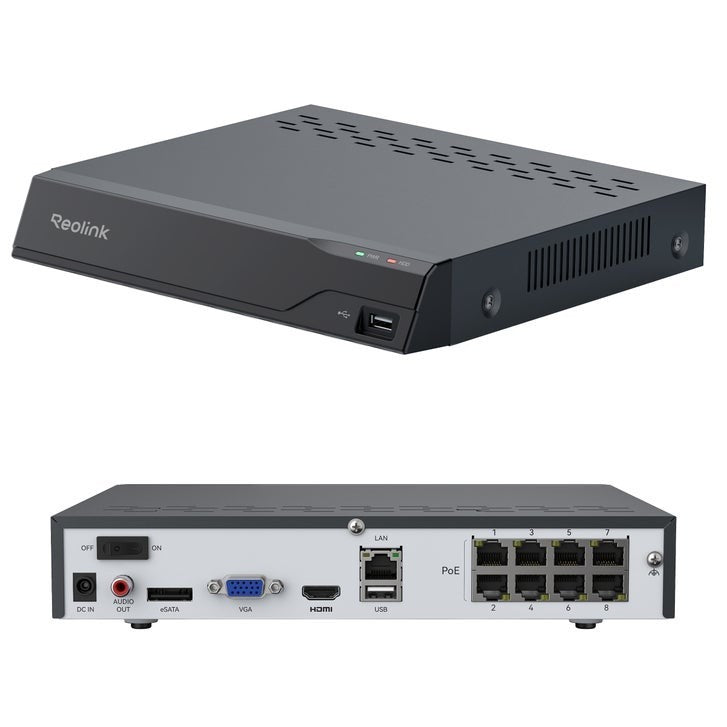

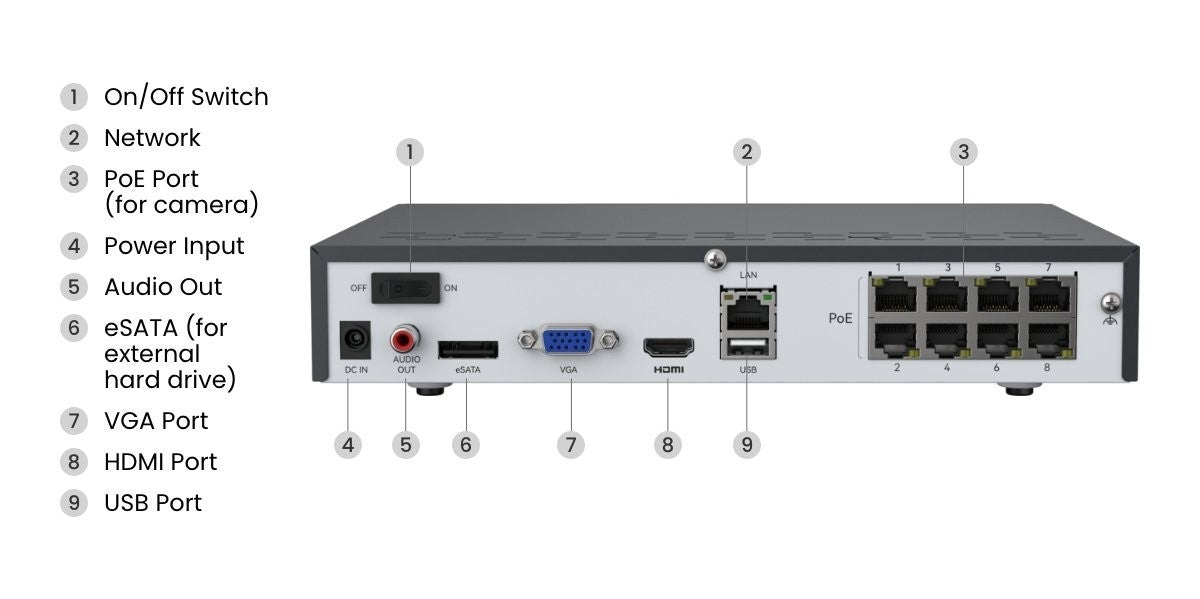

• HDMI Output: Up to 3840 × 2160

• VGA Output: Up to 1920 × 1080

• Network Interface: RJ45 Ethernet

• USB Ports: 2 × USB 2.0

• Audio Output: 1 RCA channel

• Supported Platforms: iOS, Android, Windows, and macOS

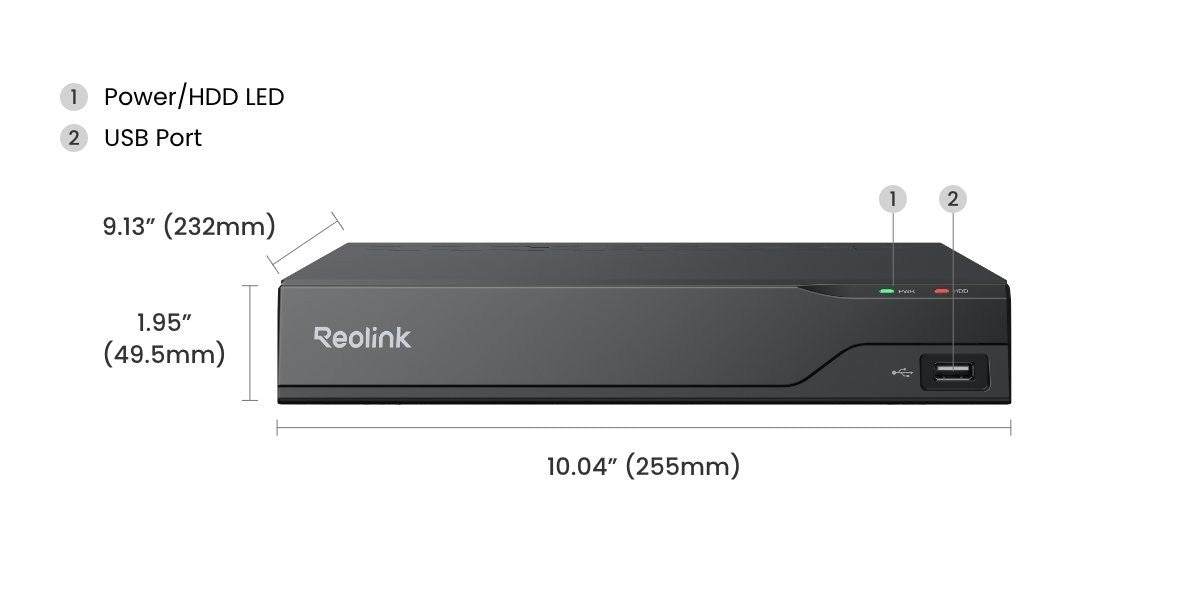

• NVR Dimensions: 10.04" × 1.95" × 9.13"

• Listed NVR Weight: 3.09 lbs.

• Warranty: 2 years

• Listed Country of Origin: Vietnam

Included Cameras

• Camera Type: Dome

• Power and Connection: Wired PoE

• Resolution: 8MP / 4K, 3840 × 2160

• Frame Rate: Up to 20 fps

• Lens: 2.8mm, F/1.6

• Field of View: 105° horizontal / 56° vertical / 125° diagonal

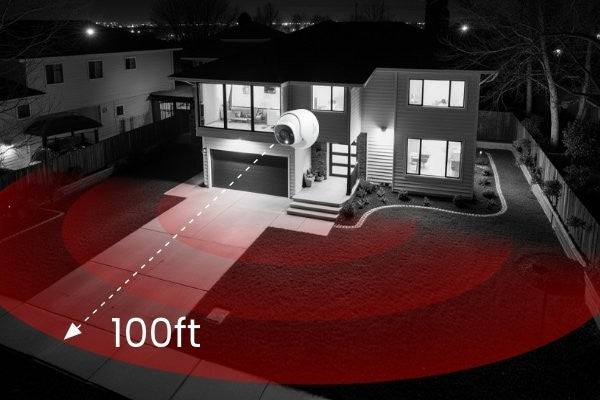

• Infrared Night Vision: Up to 100 ft. / 30 m

• Color Night Vision: Supported with built-in spotlight

• Spotlight: Listed at 700 lumens, 6500K

• Audio: Two-way

• Built-In Siren: Yes

• Smart Detection: Person, vehicle, animal, and motion

• Perimeter Features: Line crossing, zone intrusion, and zone loitering

• Weather Protection: IP67

• Operating Temperature: 14°F–131°F

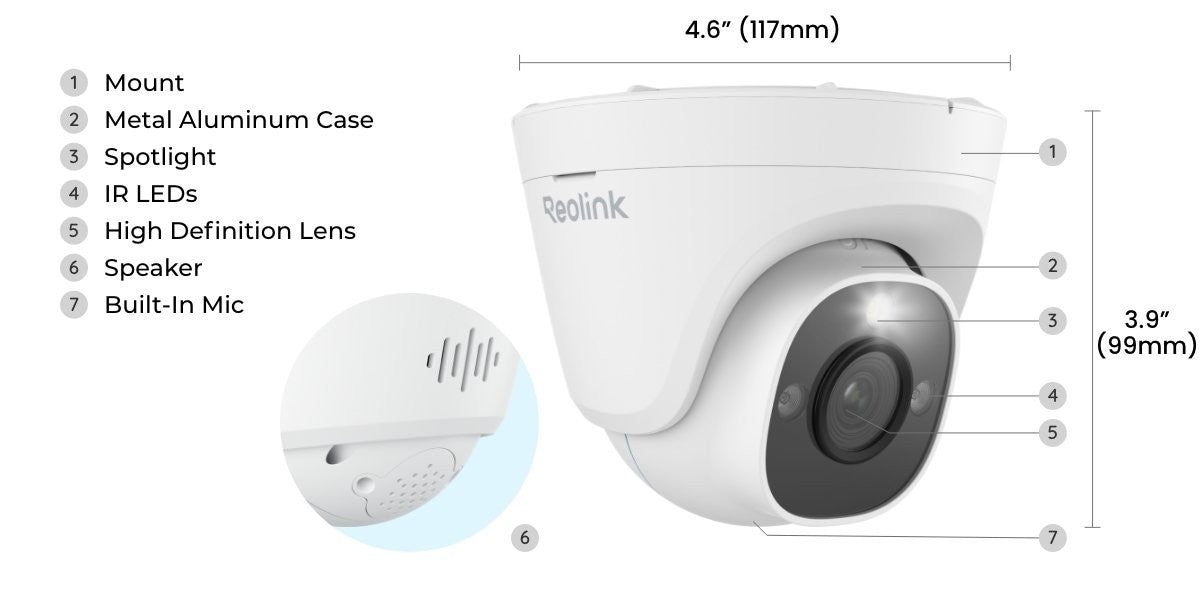

• Dimensions per Camera: Approximately 4.62" diameter × 4.09" H

• Weight per Camera: Approximately 1.16 lbs.

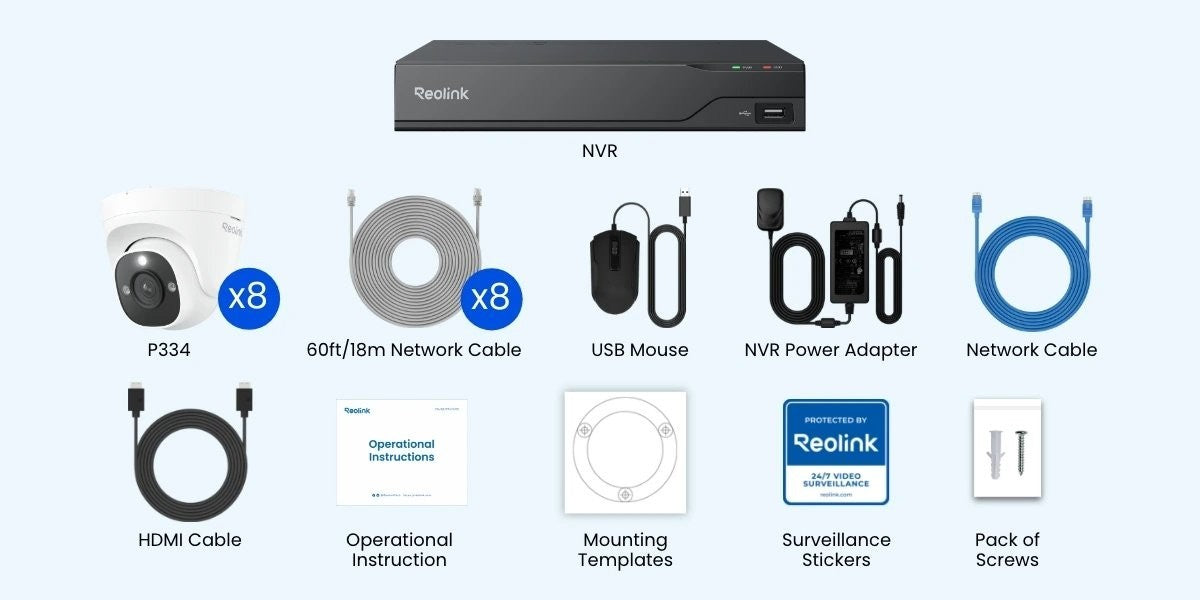

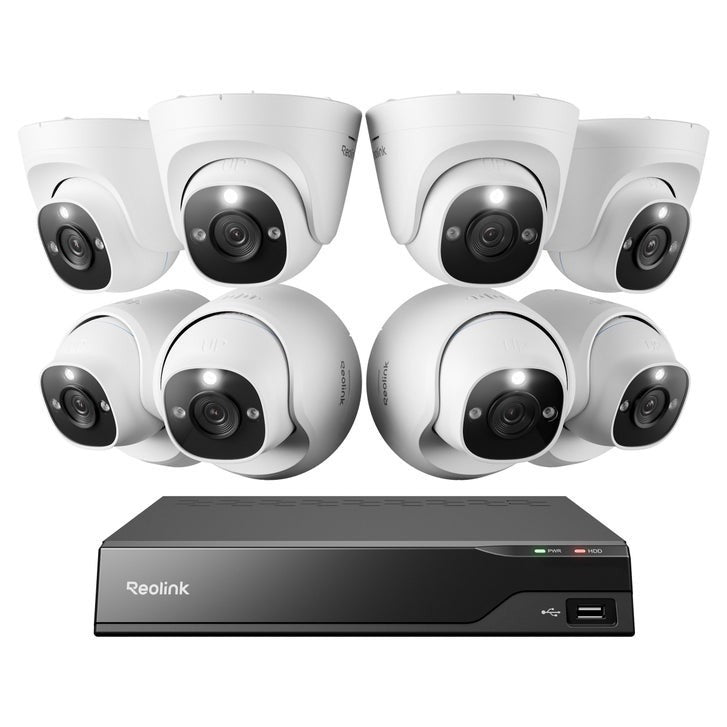

What’s Included

• 1 expandable eight-channel NVR

• 1 preinstalled 4TB hard drive

• 8 IP dome cameras

• 1 USB mouse

• 1 NVR power adapter

• 1 HDMI cable

• 1 network cable, 3.3 ft.

• 8 camera network cables, 60 ft. each

• 1 quick start guide

• 1 mounting template

• 8 waterproof connectors

• 1 surveillance sticker

• 1 screw and hardware pack

Ideal For

• Home entrances and driveways

• Garages and exterior access points

• Retail stores and stockrooms

• Small business monitoring

• Properties needing wired coverage with compatible wireless expansion

Why It Stands Out

This system combines eight wired 4K cameras with centralized local storage and room for compatible battery-camera expansion. Perimeter rules and heat mapping offer additional ways to review activity beyond basic motion alerts.

FAQ

Are the eight included cameras wireless?
No. They connect to the NVR using Ethernet cables that carry both power and video.

How does the system expand to 12 cameras?
It supports the eight PoE cameras plus up to four compatible Reolink battery-powered Wi-Fi cameras. Additional cameras are sold separately; confirm model and firmware compatibility before purchasing.

Is a monthly subscription required?
No subscription is required for recording to the included NVR hard drive.

Will it keep recording if the internet goes out?
The included wired cameras can continue recording locally while the NVR and cameras remain powered and connected. Remote access and internet notifications require an internet connection.

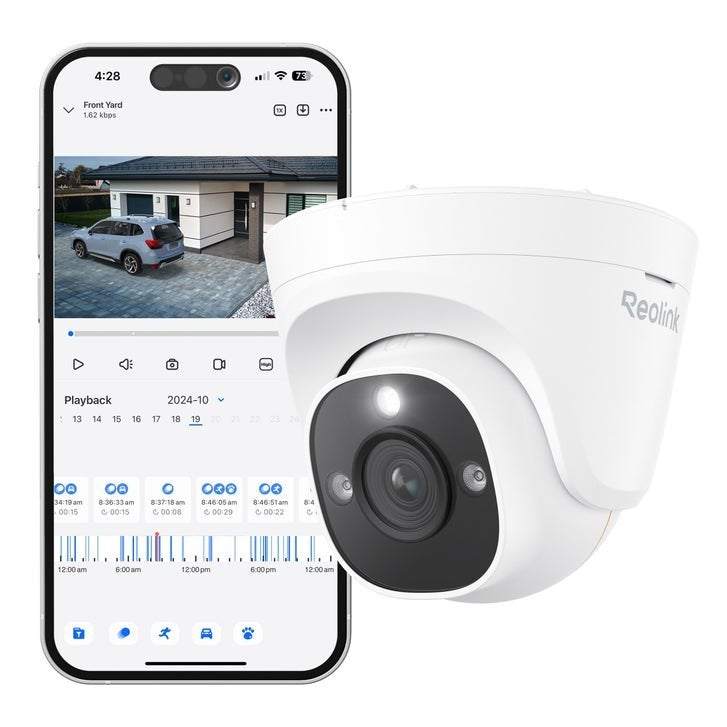

Can I view footage on my phone or TV?
Yes. Use the Reolink App for remote access, or connect a compatible display through HDMI or VGA. An HDMI cable is included.

What does heat mapping show?
It uses a color-coded overlay to show where motion occurs more or less frequently. It visualizes activity rather than measuring temperature.

Does the 100-foot night vision range apply to color footage?
The supplied description associates the 100-foot range with infrared night vision. Color night vision uses the built-in spotlight.

How long will the 4TB drive retain footage?
Retention depends on camera count, bitrate, resolution, frame rate, and recording schedule. A fixed recording duration is not guaranteed.
