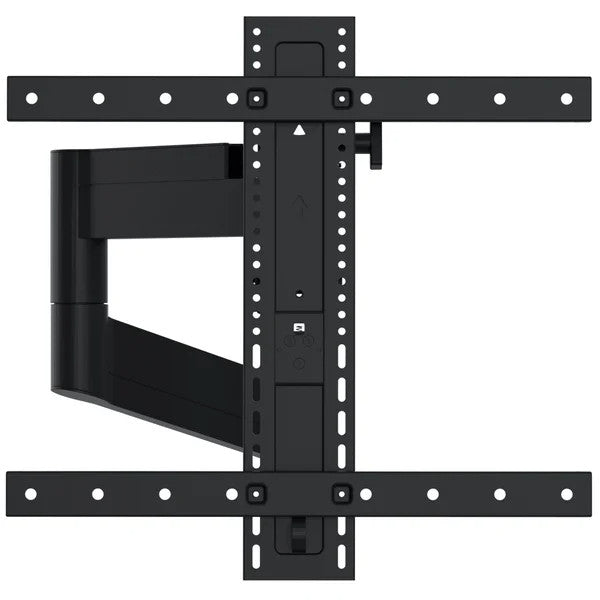

SANUS Preferred 26"–65" Full-Motion TV Wall Mount SMF421A-B1, 21" Extension and 60 lb. Capacity

Position your television for comfortable viewing with the SANUS Preferred SMF421A-B1 Full-Motion TV Wall Mount. Designed for compatible 26"–65" TVs weighing up to 60 lb., the mount extends as far as 21" from the wall and retracts to a low-profile depth of 2.1".

Dual articulating arms provide smooth extension and swiveling, while tool-free tilt helps reduce glare or improve the viewing angle. Integrated cable-management channels route power and HDMI cables along the mount arms for a cleaner installation.

Key Features

• Fits compatible 26"–65" televisions

• Supports TVs weighing up to 60 lb.

• Full-motion articulating design

• Extends up to 21" from the wall

• Retracts to approximately 2.1"

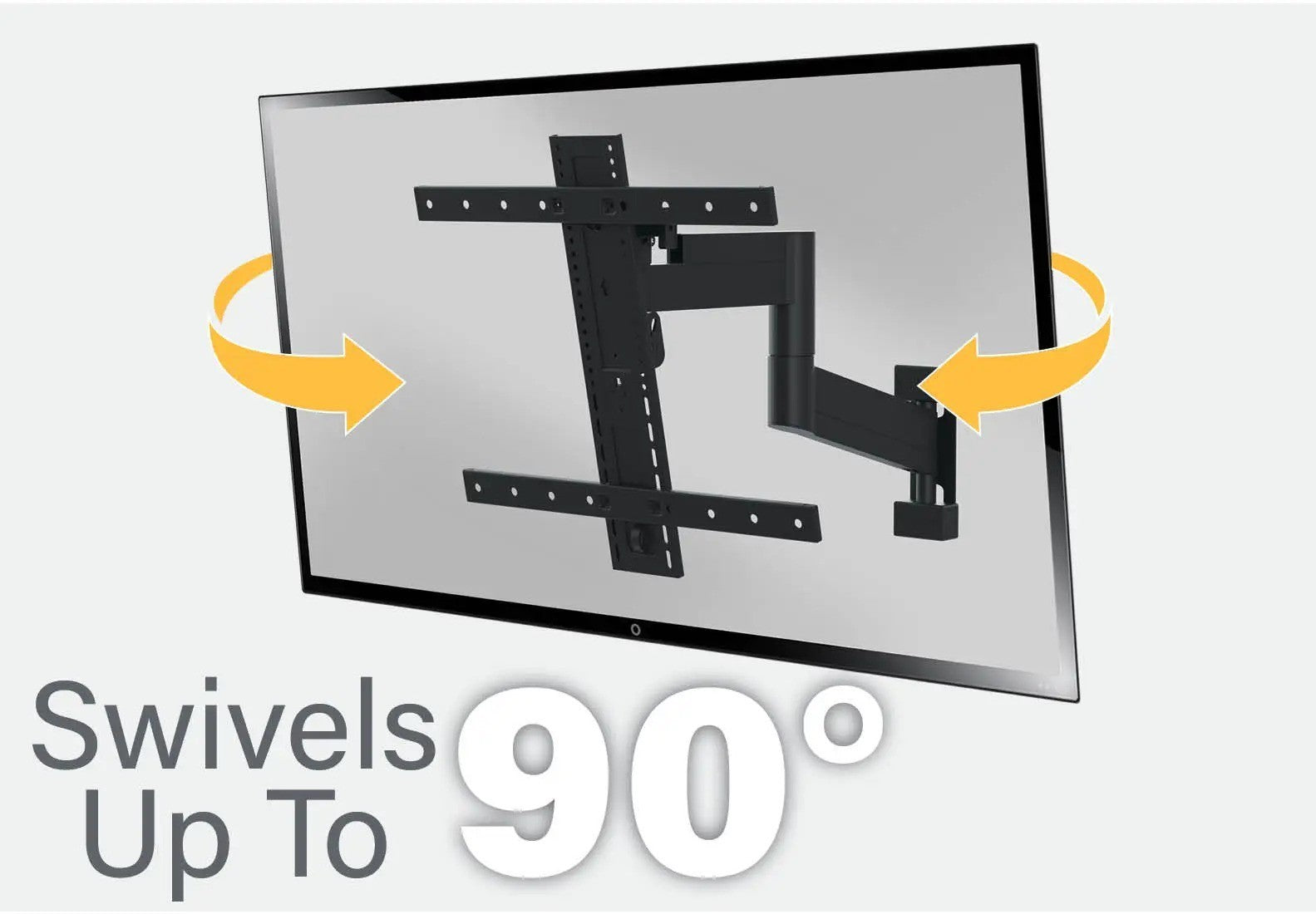

• Swivels up to 90° left or right

• Tool-free tilt adjustment

• Tilt range of +4° to -15°

• Post-installation leveling adjustment up to 6°

• Approximately 1" of height adjustment

• Supports VESA patterns from 100 × 100 to 400 × 400

• Integrated cable-management channels

• Compatible with wood-stud and suitable brick or concrete walls

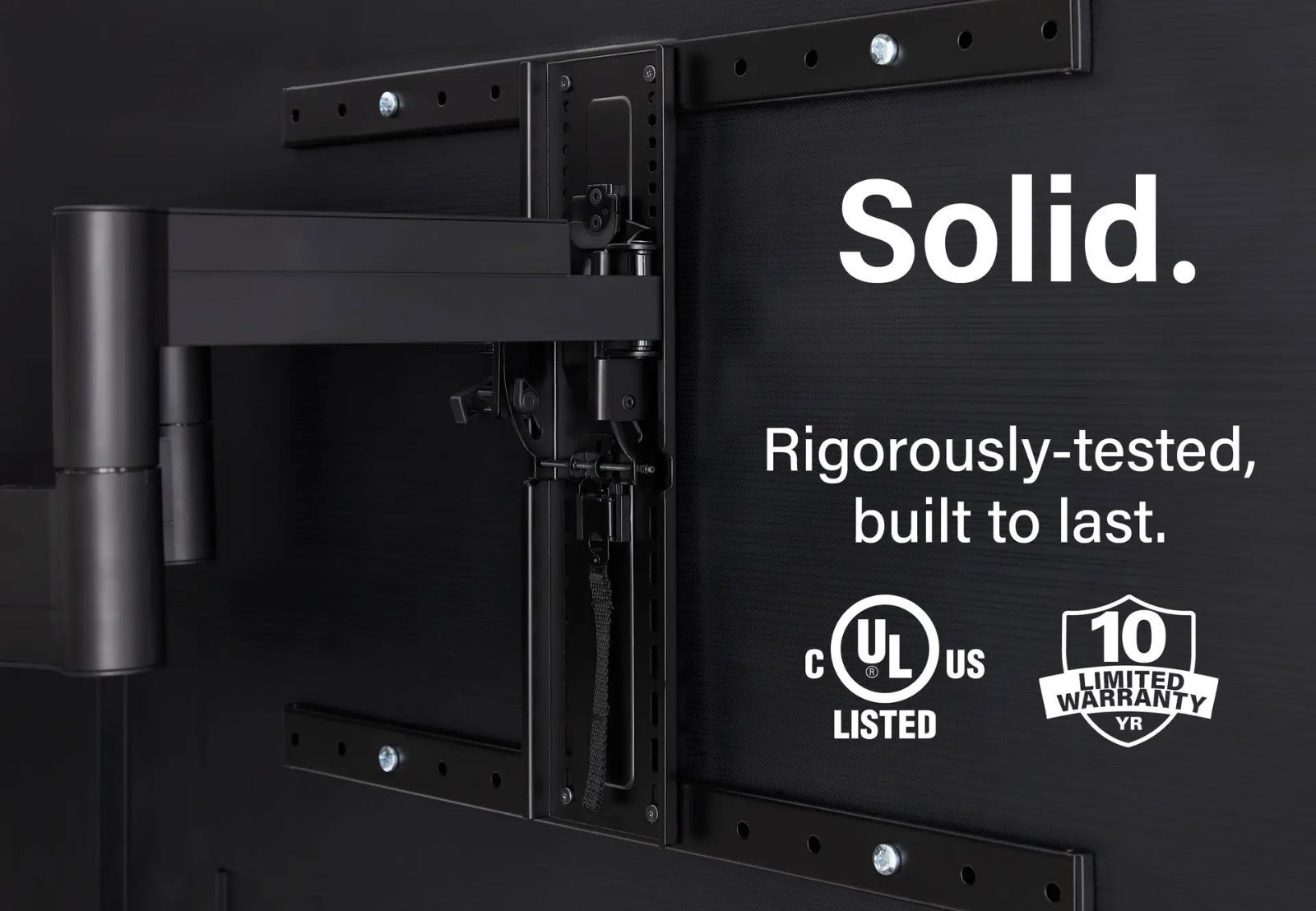

• Safety tested

• 10-year warranty

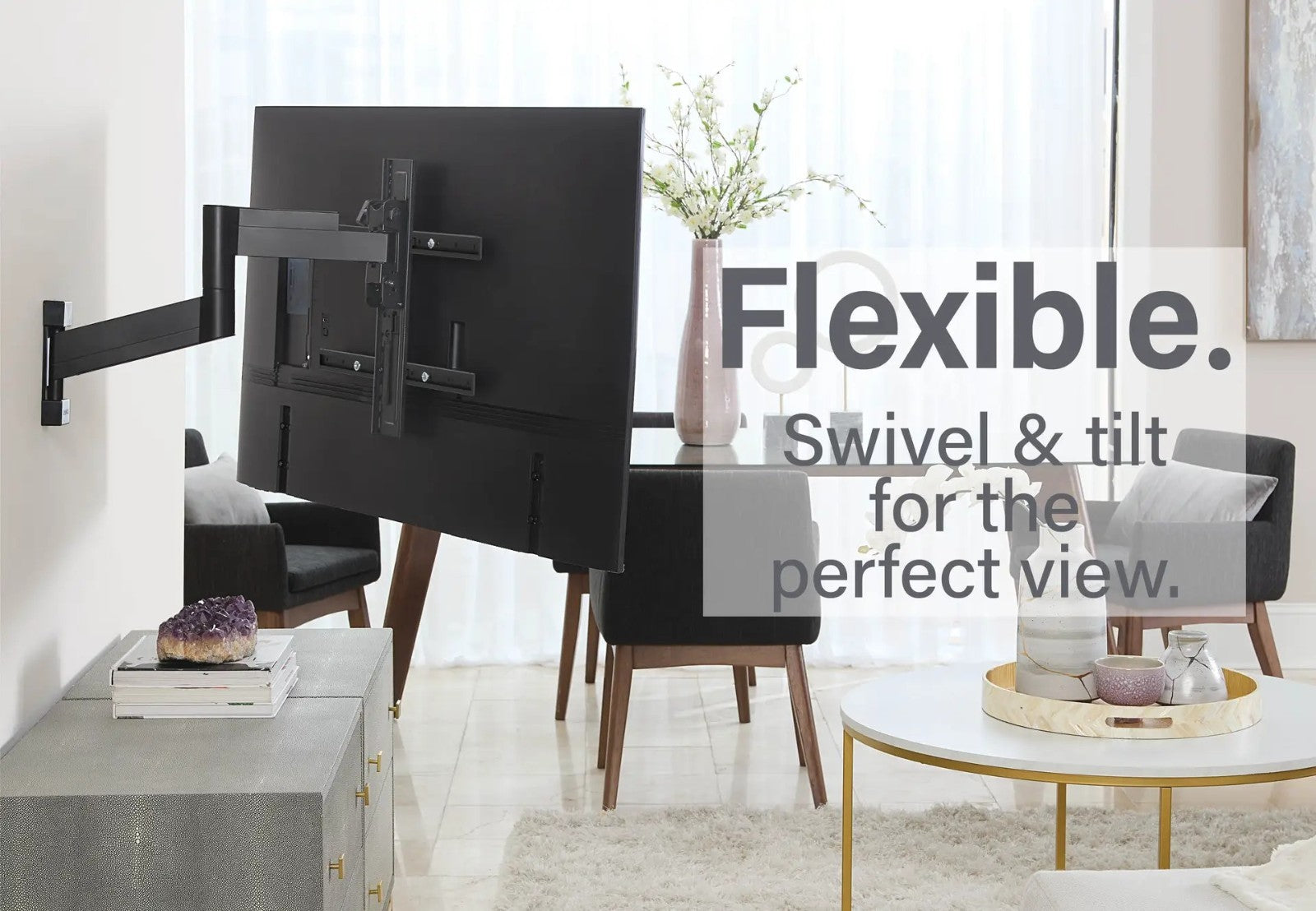

Full-Motion Adjustment

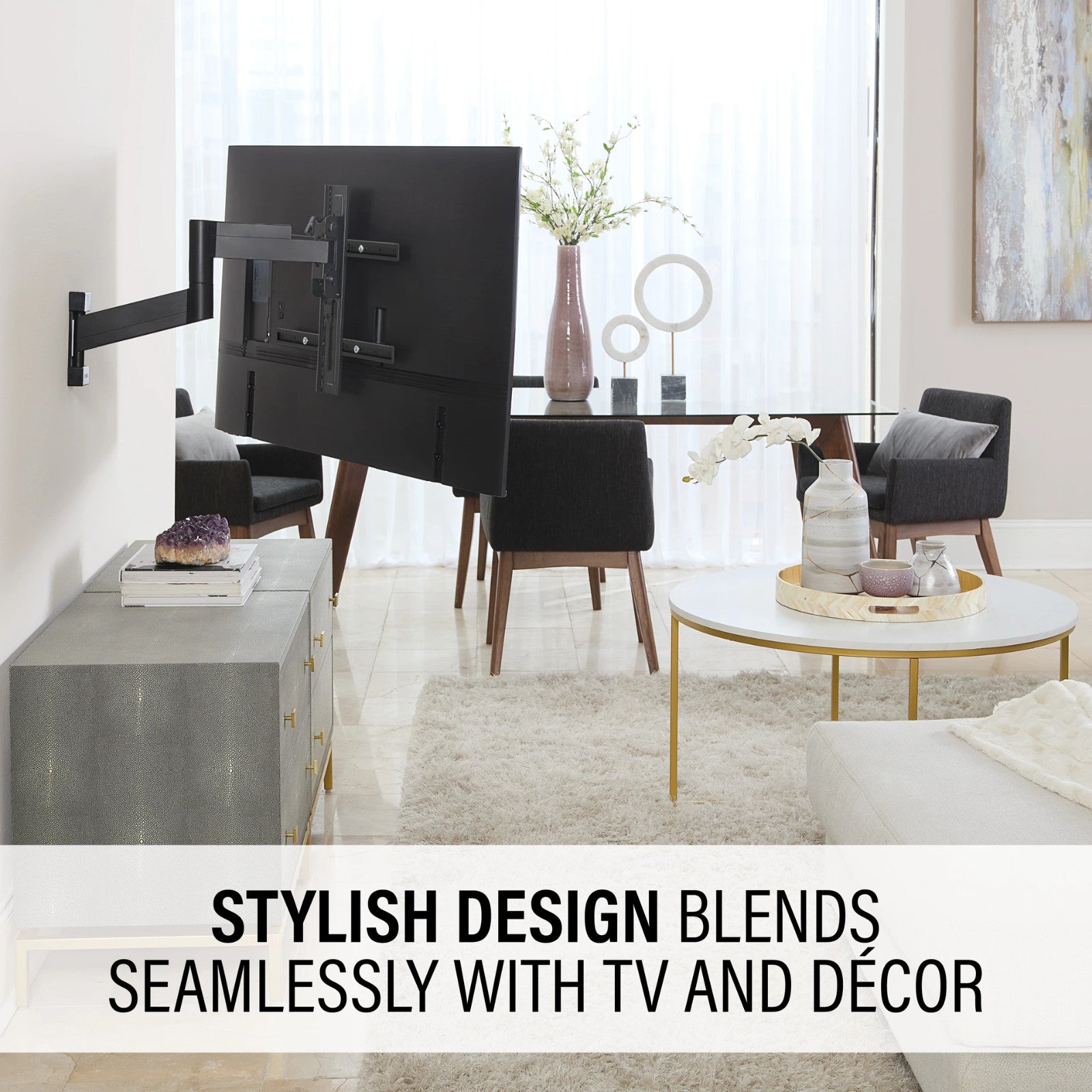

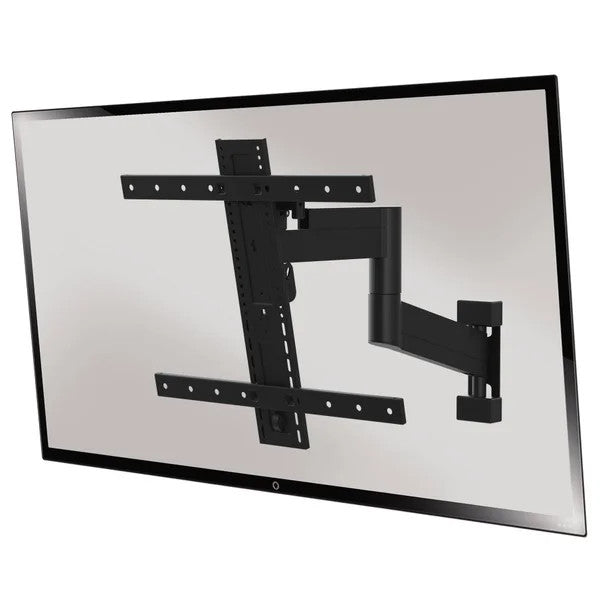

The dual-arm design allows the mounted television to extend, swivel and tilt for different seating arrangements.

Available adjustments include:

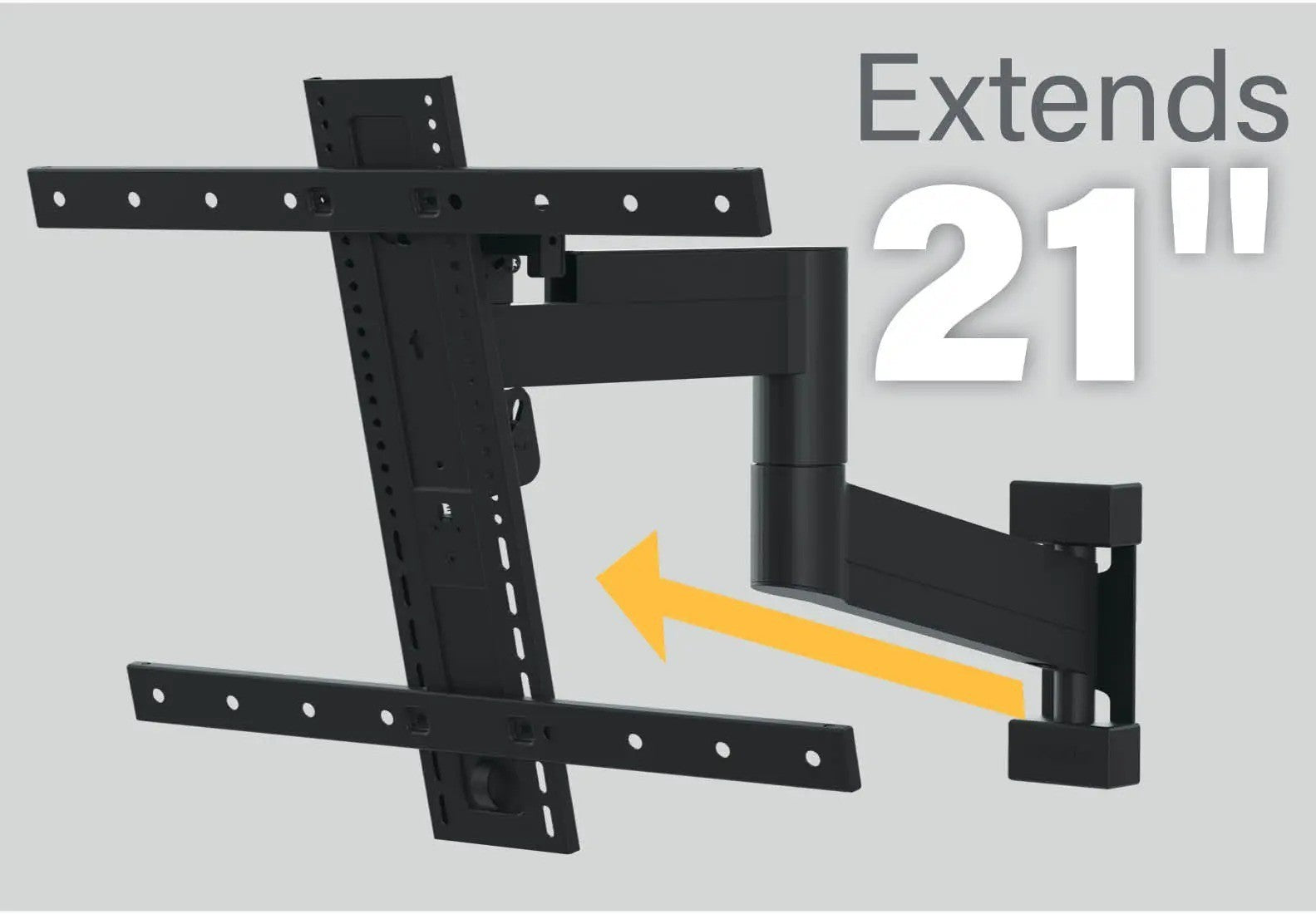

• Extension: Up to 21"

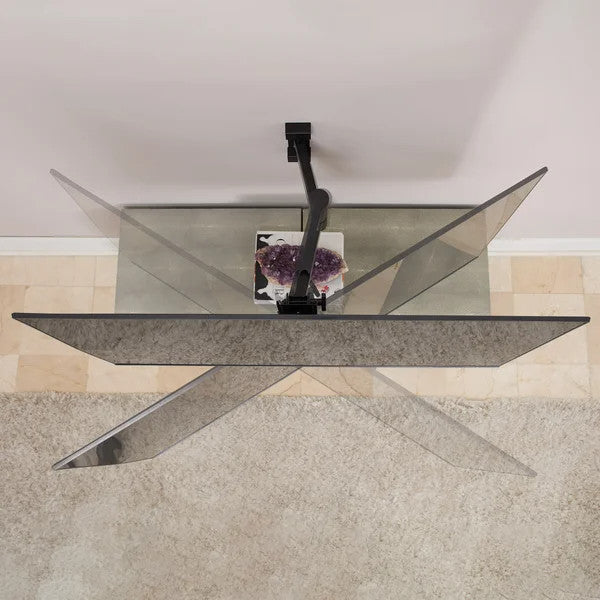

• Swivel: Up to 90° left or right

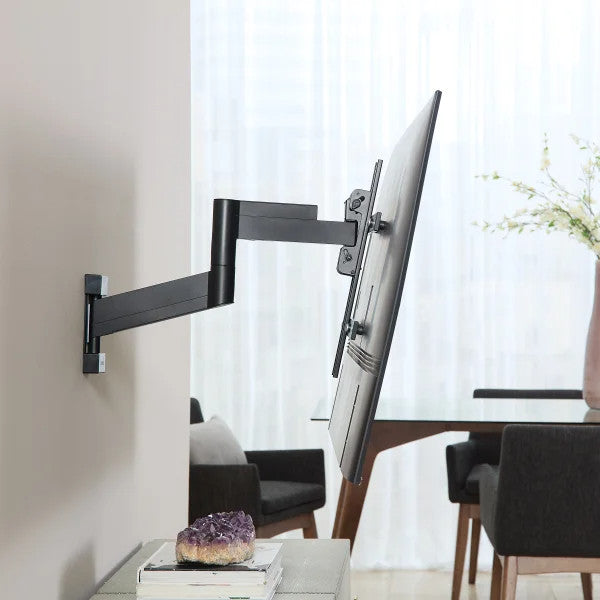

• Tilt: +4° upward to -15° downward

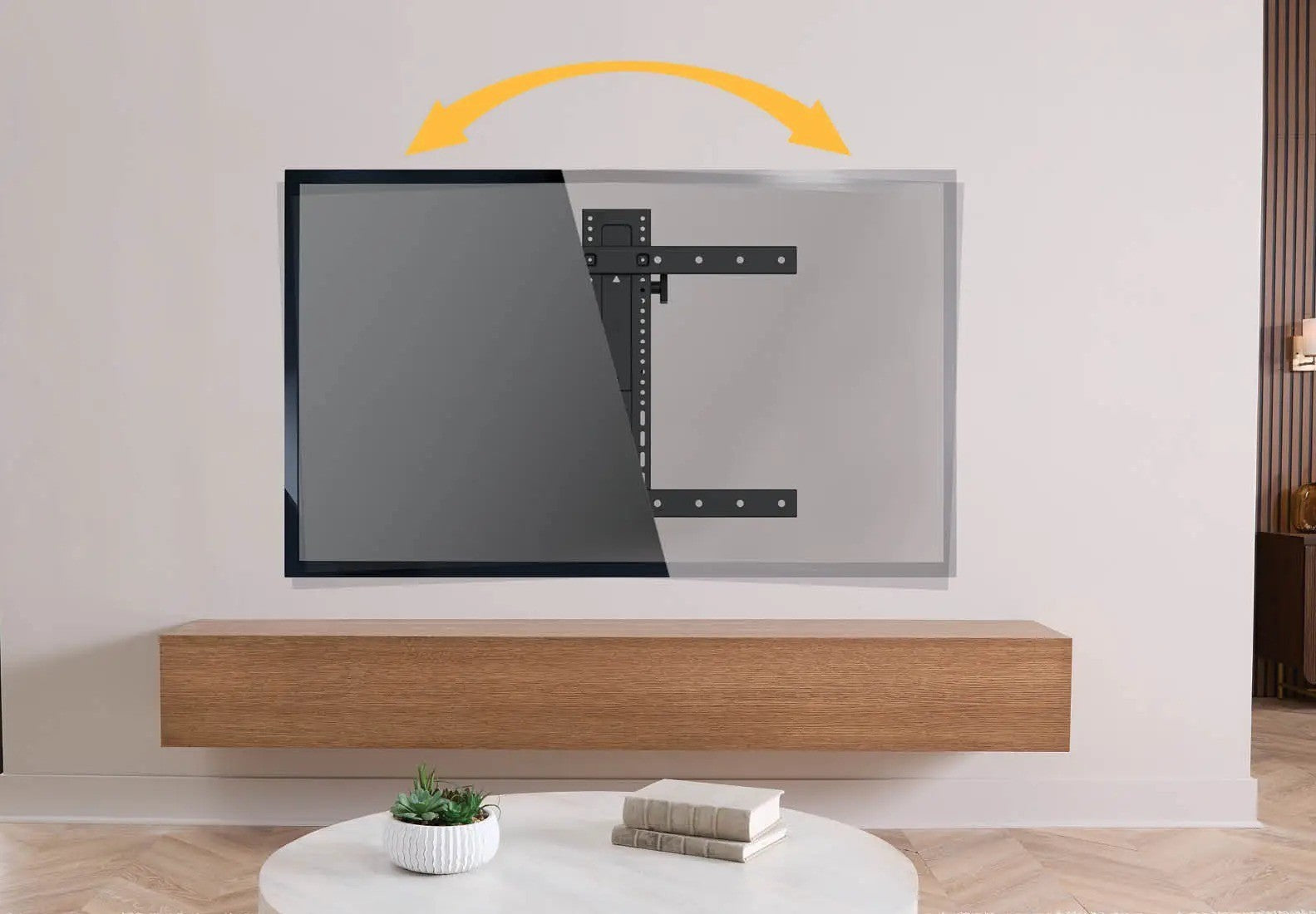

• Leveling: Up to 6° after installation

• Height Shift: Approximately 1"

Actual swivel range may be reduced by the TV’s width, thickness, mounting position or proximity to adjacent walls.

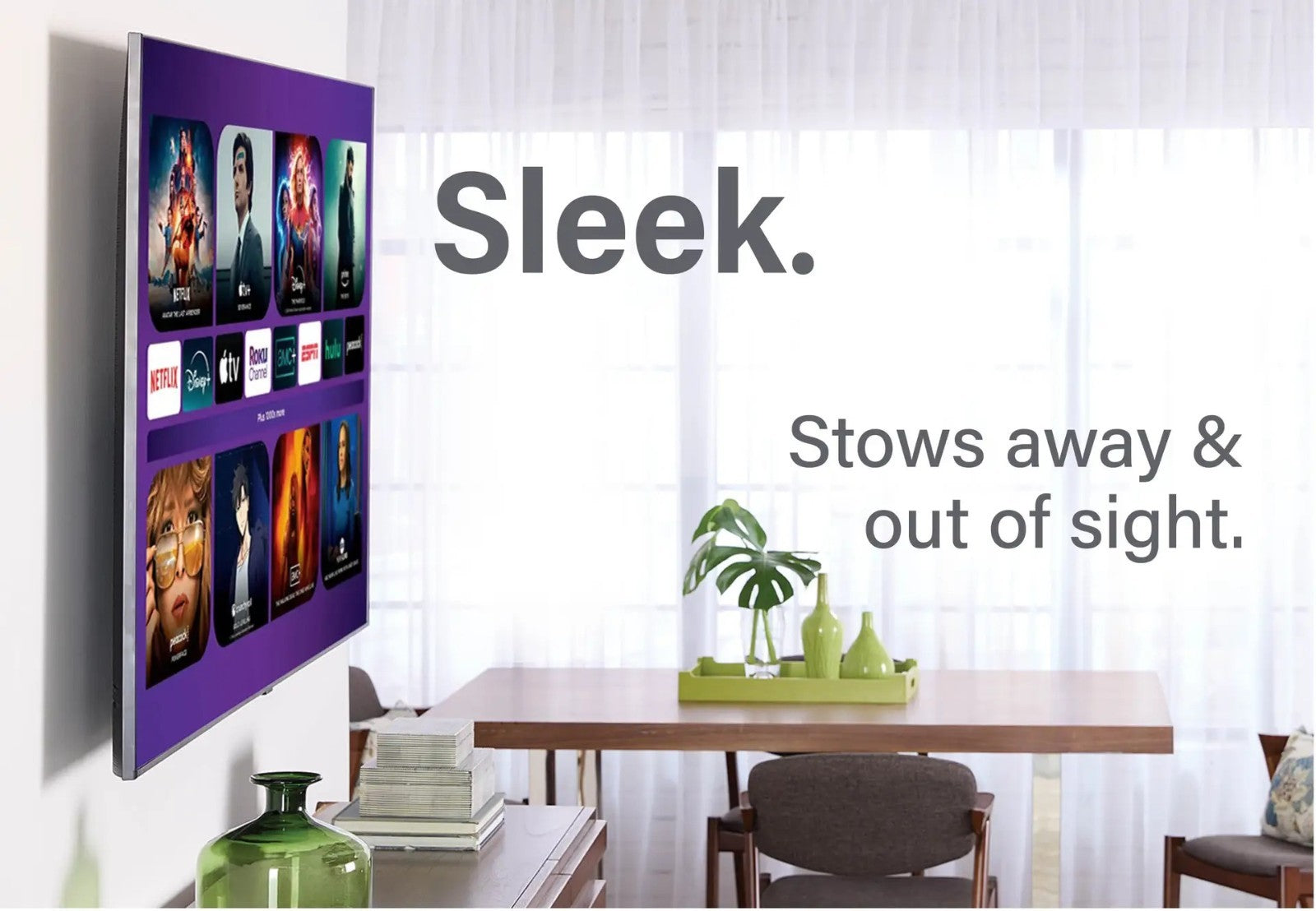

Low-Profile Design

When retracted, the mount positions the television approximately 2.1" from the wall. Pull the TV forward when additional swivel access, cable access or viewing-angle adjustment is needed.

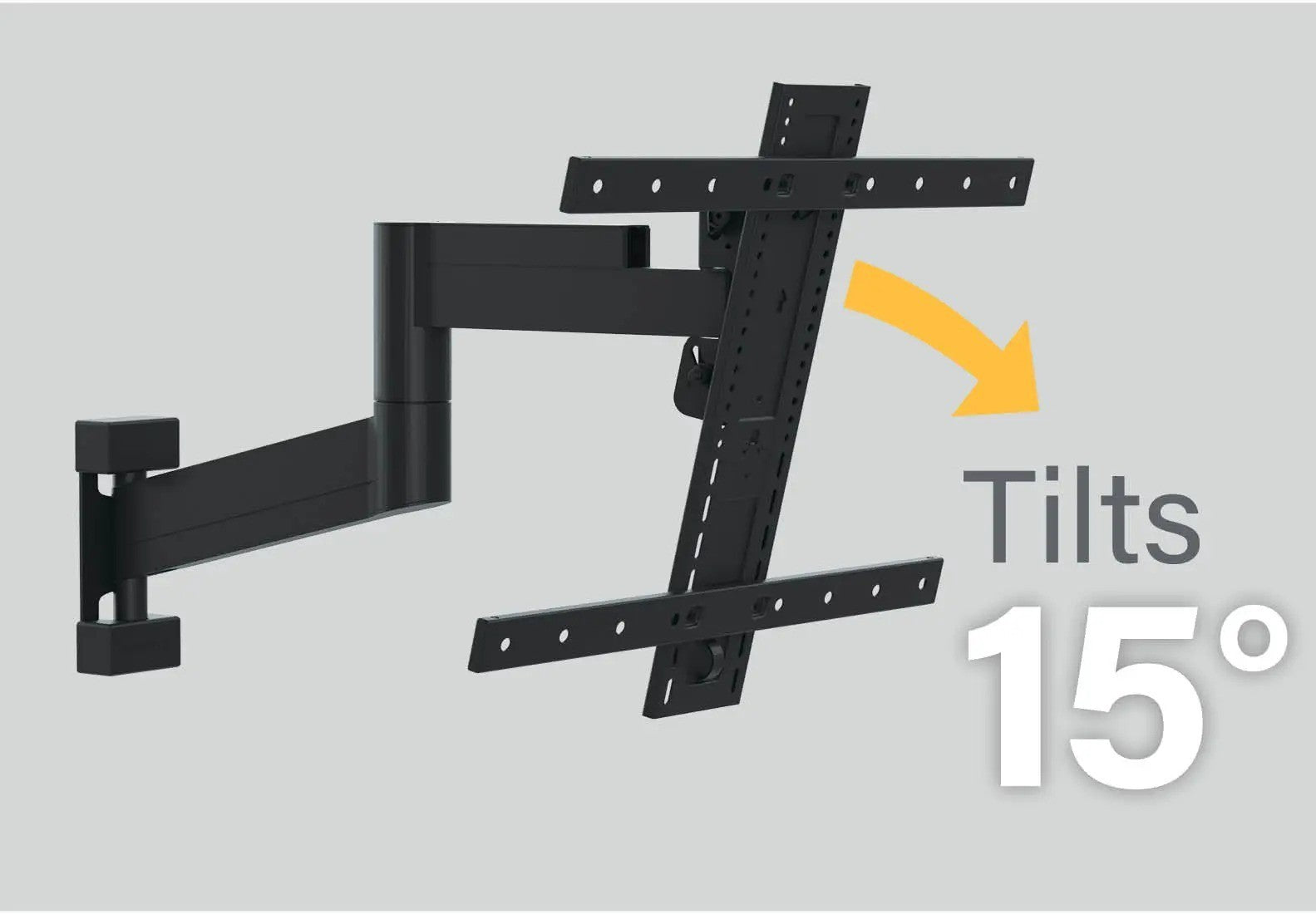

Tool-Free Tilt

The screen angle can be adjusted without a separate tool after installation. Downward tilt may help improve visibility when the television is mounted above normal eye level, while upward adjustment provides additional positioning flexibility.

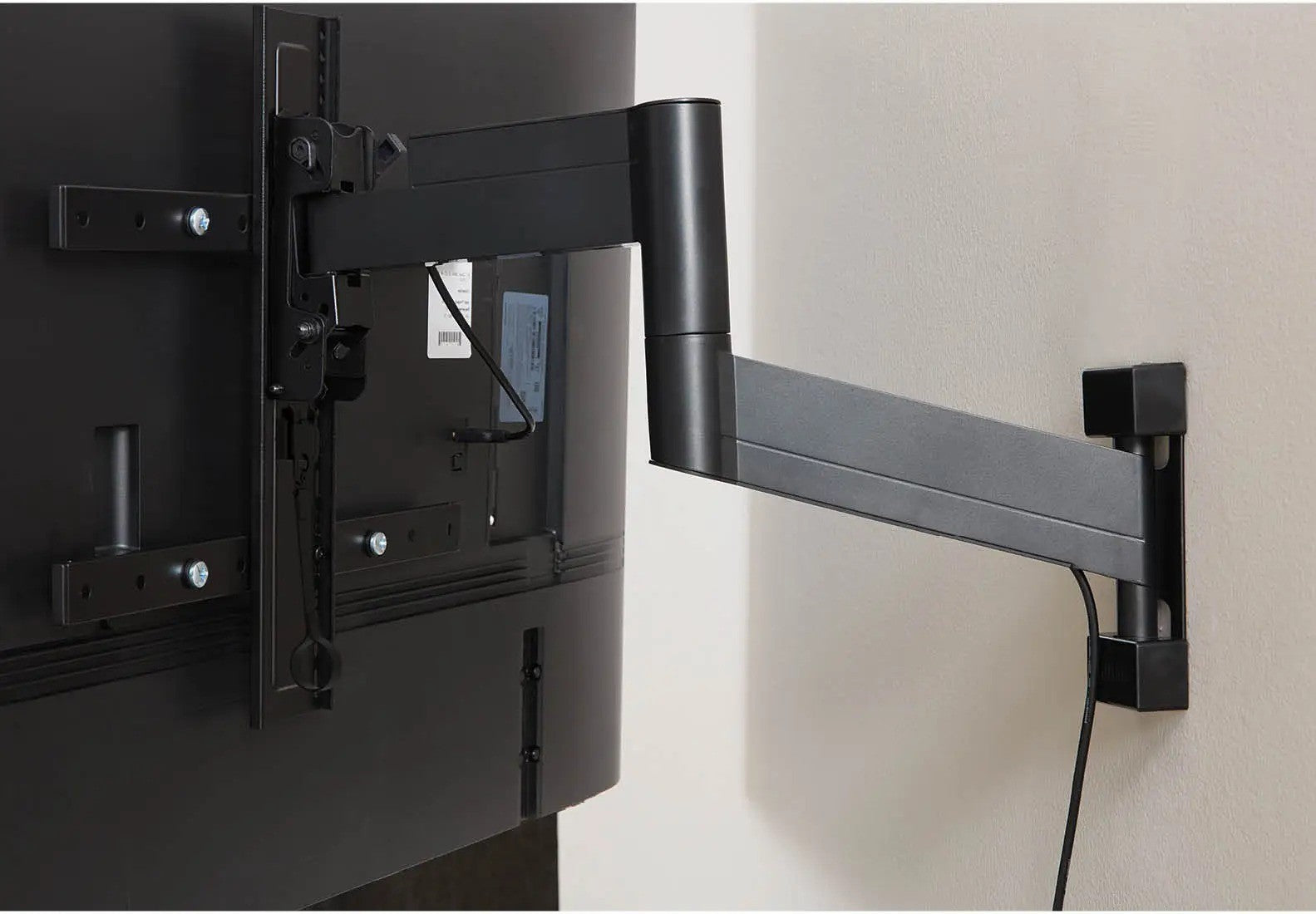

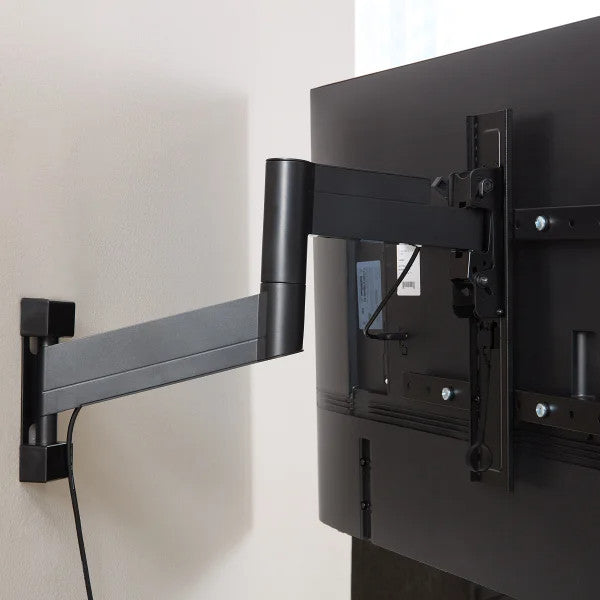

Cable Management

Channels integrated into the articulating arms help route and organize compatible power, HDMI and other AV cables.

Leave enough cable slack to allow the mount to extend and swivel fully without pulling on the television’s ports.

TV Compatibility

Before ordering, confirm all three requirements:

• Screen size is between 26" and 65"

• Total TV weight, without its tabletop stand, does not exceed 60 lb.

• VESA mounting pattern is between 100 × 100 and 400 × 400

Screen size alone does not determine compatibility.

Wall Compatibility

The mount is designed for installation on:

• Wood-stud walls

• Suitable solid concrete

• Suitable brick or masonry

Installation methods and hardware requirements vary by wall type. Do not attach the mount to unsupported drywall, loose masonry or an unverified wall surface.

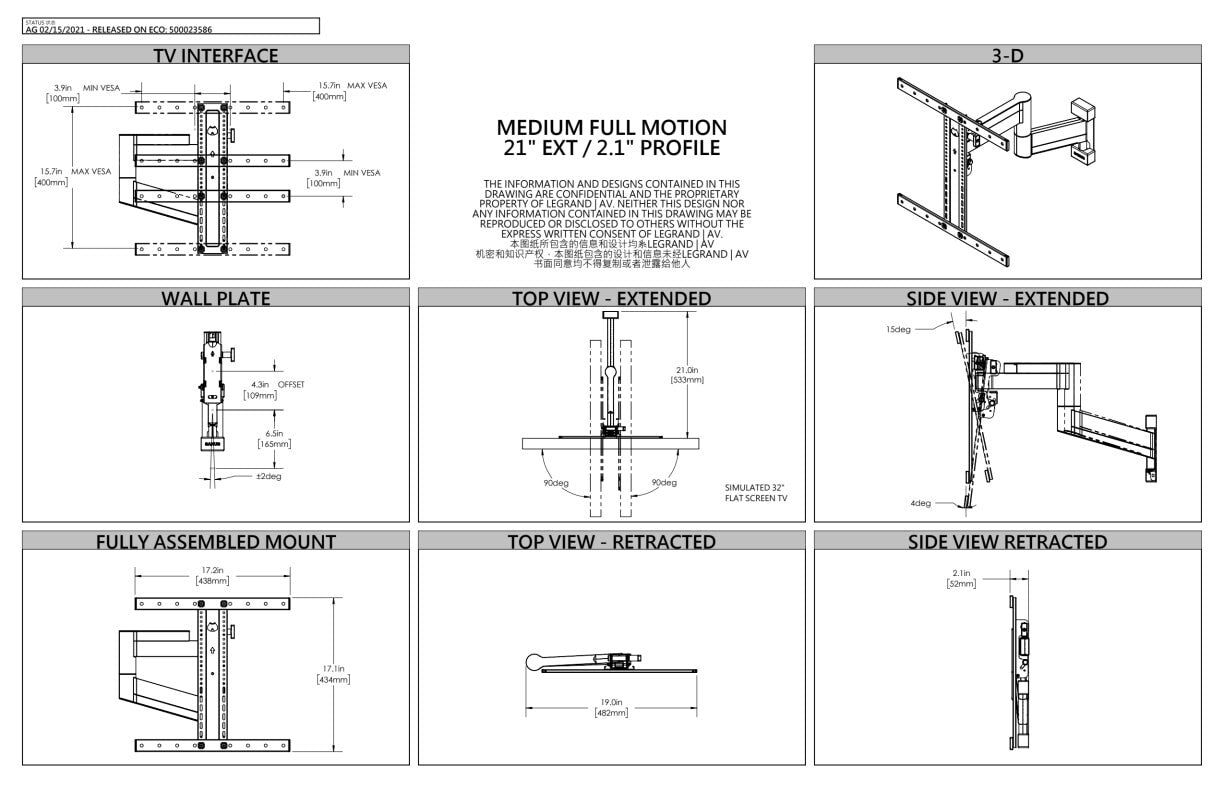

Specifications

• Brand: SANUS

• Product Line: Preferred

• Model: SMF421A-B1

• Product Type: Full-Motion TV Wall Mount

• Compatible TV Size: 26"–65"

• Weight Capacity: 60 lb.

• Minimum VESA Pattern: 100 × 100

• Maximum VESA Pattern: 400 × 400

• Minimum Distance from Wall: 2.1"

• Maximum Extension: 21"

• Swivel Range: Up to 90° Left or Right

• Tilt Range: +4° / -15°

• Leveling Adjustment: 6°

• Height Shift Range: 1"

• Mount Dimensions: 19" W × 17.1" H

• Mount Weight: 8.16 lb.

• Compatible Wall Types: Wood Stud, Solid Concrete and Suitable Brick

• Warranty: 10 Years

What’s Included

• 1 SANUS Preferred SMF421A-B1 full-motion TV wall mount

Refer to the product package or installation manual to confirm the exact included fasteners, spacers, mounting template and installation tools.

Installation Considerations

Before installation:

1. Confirm the television’s weight and VESA pattern.

2. Identify the wall construction and stud locations.

3. Check for plumbing, electrical wiring and other hidden utilities.

4. Select hardware appropriate for the wall material.

5. Verify that the viewing location provides sufficient extension and swivel clearance.

6. Confirm that cables are long enough for full movement.

7. Follow all torque and fastener requirements in the installation manual.

Two-person installation is recommended when lifting and attaching the television.

Above-Fireplace Installation

The tool-free tilt can improve the viewing angle when a television is mounted above eye level. Before installing above a fireplace, verify that heat exposure, wall construction, clearances and the television manufacturer’s requirements are suitable for that location.

Ideal For

• Living rooms and bedrooms

• Corners and angled seating areas

• TVs mounted above normal eye level

• Home theaters and media rooms

• Wood-stud walls

• Suitable brick or concrete walls

• Installations requiring cable organization

• Viewers who want extension, swivel and tilt adjustments

Why It Stands Out

The SMF421A-B1 combines a 21" extension with a compact 2.1" retracted profile. Its dual articulating arms, tool-free tilt, post-installation leveling and integrated cable channels provide flexible positioning while maintaining a streamlined appearance.

Warranty

• 10-year warranty

Coverage is subject to SANUS warranty terms, exclusions and proof-of-purchase requirements.

Important Safety Information

• Never exceed the 60 lb. weight limit

• Confirm VESA compatibility before installation

• Mount only to structurally sound surfaces

• Do not install directly into unsupported drywall

• Use the correct fasteners for the wall type

• Check for concealed plumbing and wiring before drilling

• Use two people to lift and secure the television

• Periodically inspect the mounting hardware for looseness

• Stop using the mount if any component is damaged or unstable

Frequently Asked Questions

What TV sizes fit this mount?

It is designed for compatible televisions measuring 26"–65".

What is the maximum TV weight?

The television must weigh no more than 60 lb., excluding its tabletop stand.

Which VESA patterns are supported?

It supports compatible VESA patterns from 100 × 100 through 400 × 400.

How far does the mount extend?

It extends up to 21" from the wall.

How close does the TV sit when retracted?

The minimum depth is approximately 2.1" from the wall.

Can the television tilt and swivel?

Yes. The mount tilts from +4° to -15° and swivels up to 90° left or right, subject to the television’s dimensions and installation location.

Does it include cable management?

Yes. Channels inside the mount arms help route and organize power and AV cables.

What walls are compatible?

It can be installed on properly constructed wood-stud, solid concrete or suitable brick walls using the correct installation method and hardware.
